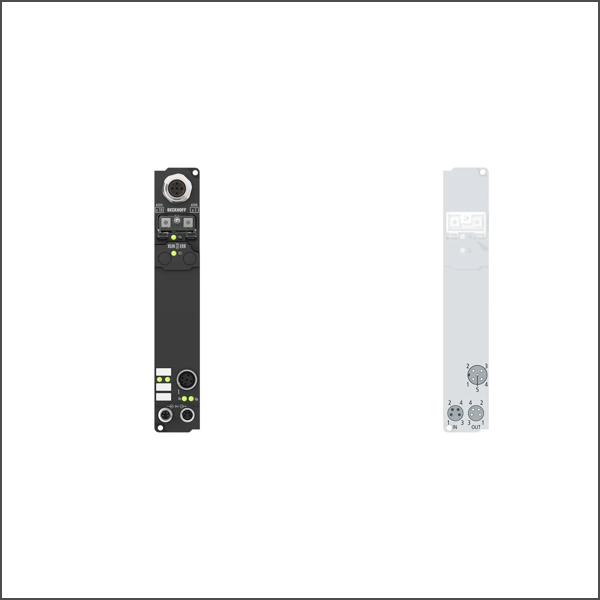

IP6002-B510 Fieldbus Box
SKU: IP6002-B510
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The IP6002 serial interface module allows the connection of devices with an RS232 interface, which operates in conformity with the CCITT V.28/DIN 66 259-1 standards. The module transmits the data in a fully transparent manner to the higher-level automation device. Number of I/O stations: 63, with repeater: 99.
Buy currently uses Select Automation shop pricing and checkout.
Digital peripheral signals: according to I/O type
Analog peripheral signals: according to I/O type
Number of PDOs (CANopen): 16 send and 16 receive process data objects
Additional CANopen features: life, node guarding, emergency object, variable mapping, store/restore
Configuration possibility : through KS2000 or the controller (service data objects)
Data transfer rates: automatic detection of 10 kbaud up to 1 Mbaud
Bus interface: 1 x M12 plug, 5-pin
Power supply: control voltage: 24 V DC (-15 %/+20 %); load voltage: according to I/O type
Power supply connection: feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
Box supply current: 45 mA + current consumption of sensors, max. 0.5 A
Auxiliary power current: according to I/O type
Electrical isolation: control voltage/fieldbus: 500 V, control voltage/inputs or outputs: according to I/O type
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings: CE, UL
