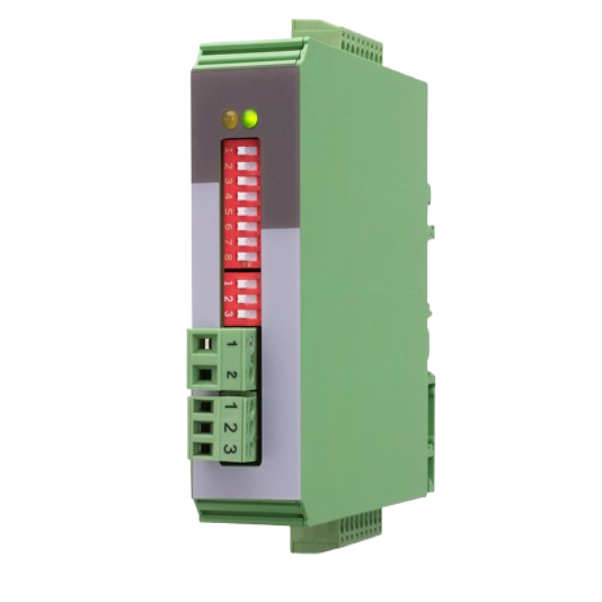

Level Converter Directional Decoder and programmable Pulse Divider IT210
SKU: IT210
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The IT210 Level Converter, Directional Decoder, and Programmable Pulse Divider is a universal interface used with incremental measuring systems with numerous features, such as level conversion (RS422, HTL single ended, HTL differential, TTL, and vice versa).
An adaptable tool made to interface with incremental measuring systems is the Motrona IT210.
Buy currently uses Select Automation shop pricing and checkout.
Key Features:
Level Conversion: Converts between RS422, HTL (single-ended and differential), and TTL formats.
Pulse Division: Divides two-track A/B pulses with an adjustable ratio from 1:1 to 1:4096.
Z Pulse Division: Divides the Z pulse with an adjustable ratio from 1:1 to 1:256.
Directional Implementation: Implements two types of representations for the direction of rotation (A/B 90°, A/B direction).
Settings: Configurable via DIP switches on the housing.
Power Supply: 9 ... 30 VDC.
Housing: Compact snap-on housing for top hat rail (EN 60715).
