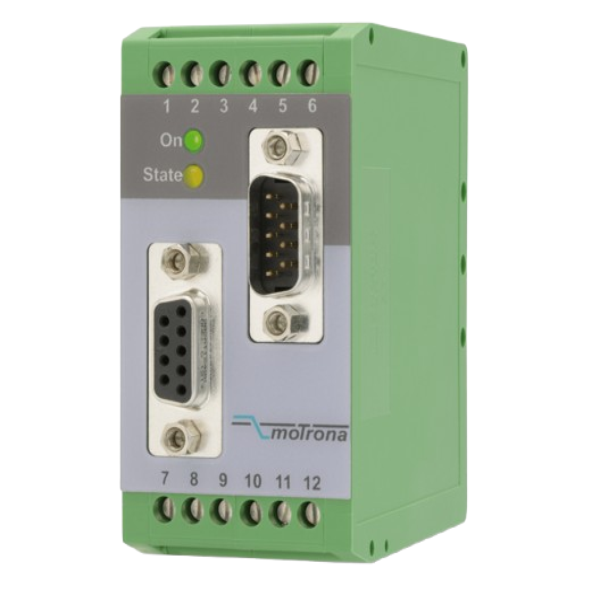

Programmable Encoder Frequency Divider
SKU: IT251
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
IT251 is a universal interface that can be used with measurement devices and incremental encoders.
The device features the ability to precisely divide dual channel encoder pulses with an adjustable ratio of 1: 1 to 1: 4096, convert TTL/RS422 to HTL and vice versa, and divide the zero pulse in an independently programmable manner.
The three current display modes for the rotational direction (A, B, 2 x 90°, A = pulse and B = direction, A = forward / B = backward) can also be switched between with this sort of gadget.
Four 8-pin DIL switches, which are conveniently located on the housing, are used to adjust all settings. The input and output cannot possibly be separated.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Pulse input with format A, /A, B, /B, Z, /Z [RS422].
Pulse input with format A, B, Z [HTL].
Input frequency up to 300 kHz.
Pulse output with format A, /A, B, /B, Z, /Z [RS422].
Pulse output with format A, B, 90° [HTL].
Power supply 18 ... 30 VDC.
Snap-on housing for top hat rail (according to EN 60715).
Setup by DIL-switches.
The level converter also contains a dual channel, programmable frequency divider or pulse splitter for the error-free division of the input pulses in a ratio of 1: 1 to 1: 4096.
Separately programmable divider for the zero pulse as well as programmable formats for the direction of rotation detection.
24 V power supply units for the level converter.
