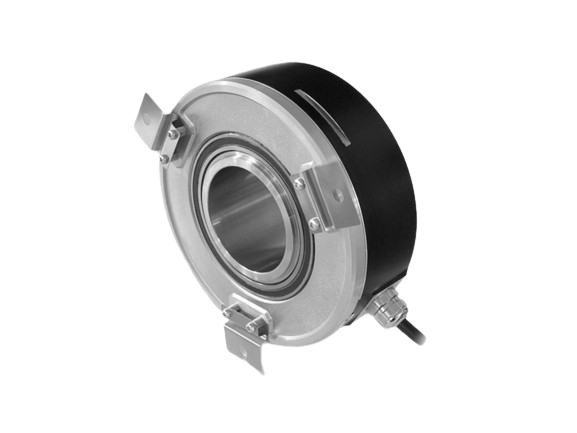

Incremental encoders, Through hollow shaft ø40 to ø65 mm
SKU: ITD 70 A 4 Y 7
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Through hollow shaft ø40 to ø65 mm:
Encoder with maximum Ø65 mm through hollow shaft.
2500 pulses each revolution at most.
Method of optical sensing.
Torque support mounting.
Ø 164 mm is the mounting hole circle.
Signals for TTL or HTL output.
Radial cable output.
Buy currently uses Select Automation shop pricing and checkout.
Electrical ratings:
Voltage supply: 5 VDC ±5 %, 8...30 VDC.
Reverse polarity protection: Yes.
Consumption w/o load: ≤100 mA.
Pulses per revolution: 1000 … 2500.
Reference signal: Zero pulse, width 90°.
Sensing method: Optical.
Output frequency: ≤120 kHz.
Output signals: A, B, N + inverted.
Output stages: TTL line driver (short-circuit proof), HTL push-pull (short-circuit proof).
Interference immunity: EN 61000-6-2.
Emitted interference: EN 61000-6-3.
Mechanical design:
Size (flange): ø150 mm.
Shaft type: ø40...65 mm (through hollow shaft).
Mounting kit: 051.
Protection EN 60529: IP 54.
Operating speed: ≤4000 rpm.
Material: Housing: aluminium, black, powder-coated, Shaft: stainless steel.
Operating temperature: -20...+70 °C.
Relative humidity: 90 % non-condensing.
Resistance: EN 60068-2-6, Vibration 10 g, 55-2000 Hz, EN 60068-2-27, Shock 100 g, 11 ms.
Connection: Cable 1 m.
Weight approx.: 2900 g.
