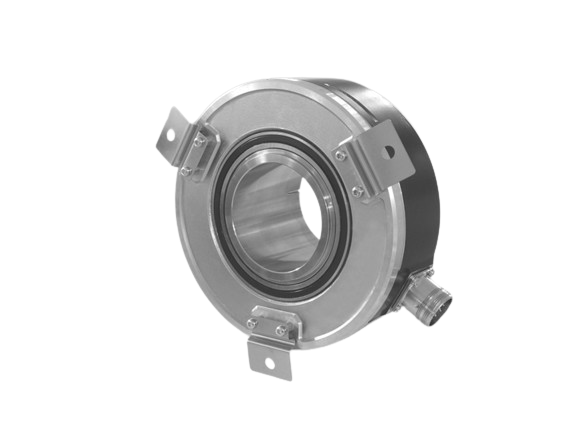

Incremental encoder Through hollow shaft ø40 to ø65 mm, ITD 70 A 4 Y 9
SKU: ITD 70 A 4 Y 9
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Through hollow shaft ø40 to ø65 mm:
Encoder with maximum Ø65 mm through hollow shaft.
2500 pulses each revolution at most.
Method of optical sensing.
Torque support mounting.
Ø164 mm is the mounting hole circle.
Signals for TTL or HTL output.
Radial flange connector.
Buy currently uses Select Automation shop pricing and checkout.
Electrical ratings:
Voltage supply: 5 VDC ±5 %, 8...30 VDC.
Reverse polarity protection: Yes.
Consumption w/o load: ≤100 Ma.
Pulses per revolution: 1000 … 2500.
Reference signal: Zero pulse, width 90°.
Sensing method: Optical.
Output frequency: ≤120 kHz.
Output signals: A, B, N + inverted.
Output stages: TTL line driver (short-circuit proof), HTL push-pull (short-circuit proof).
Interference immunity: EN 61000-6-2.
Emitted interference: EN 61000-6-3.
Mechanical design:
Size (flange): ø150 mm
Shaft type: ø40...65 mm (through hollow shaft)
Mounting kit: 051
Protection EN 60529: IP 54
Operating speed: ≤4000 rpm
Material: Housing: aluminium, black, powder-coated, Shaft: stainless steel
Operating temperature: -20...+70 °C
Relative humidity: 90 % non-condensing
Resistance: EN 60068-2-6, Vibration 10 g, 55-2000 Hz, EN 60068-2-27, Shock 100 g, 6 ms
Connection: Connector M23 type 2, 12-pin
Weight approx.: 2900 g
