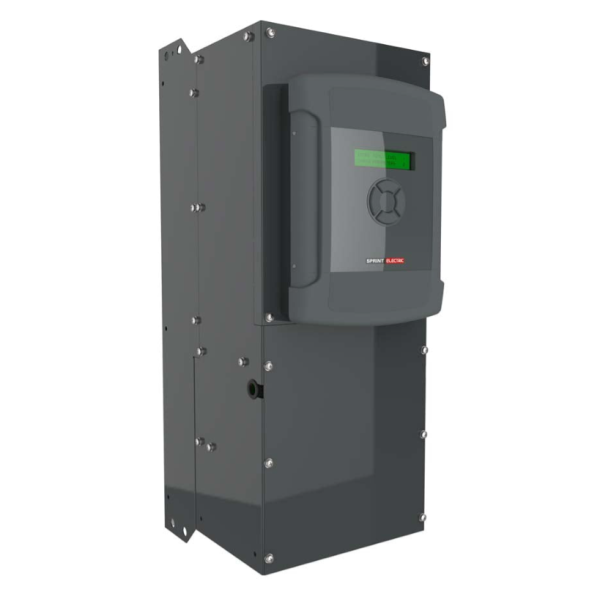

High-performance digital 2Q AC Slip-Ring motor controller, JLHD220
SKU: JLHD220
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
For accurate control of AC motors, the JLHD220 is a high-performance digital 2-quadrant AC slip-ring motor controller.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply Voltage: 12V - 500VAC.
Output Power: Up to 130kW.
Output Current: Up to 220A.
Control: 2-quadrant (non-regenerative).
Cooling: Naturally vented.
User Adjustable: Forward/reverse acceleration, forward/reverse deceleration, max/min motor speed, motor current limit, brake current limit, IR comp, stability.
Protection: Overload and stall protection, motor over-temperature, thyristor stack over-temperature, mains supply phase loss, mains synchronization loss, armature over-volts, speed feedback failure, stall protection, standstill logic, thyristor trigger failure, digital output short circuit.
Additional Features: Push-button reversing function, multiple I/O, direct pushbutton inputs for control of stop/start, direction, and jog functions.
