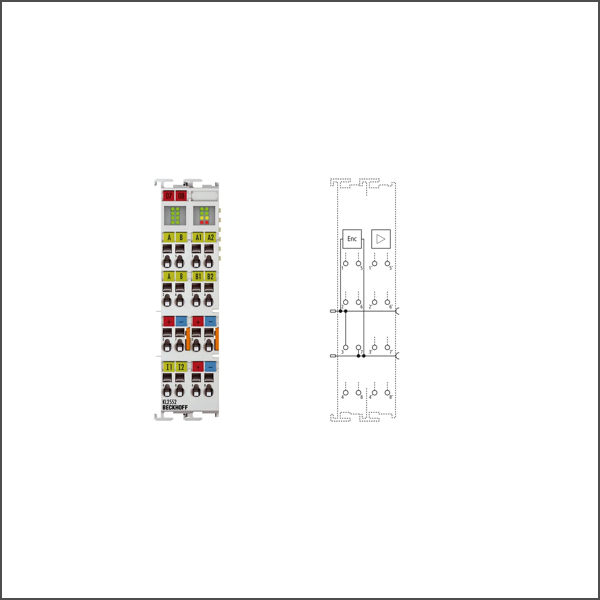

KL2552 Bus Terminal, 2-channel motion interface, DC motor, 48 V DC, 5 A

Load type: DC brush motor, inductive Number of channels: 2 Number of outputs: 1 x DC motor per channel Number of inputs: 1 x end position, 1 x encoder per channel Connection technology: direct motor connection Supply voltage electronics: 24 V DC (via power contacts) Supply voltage power: 8…48 V DC (external) Max. output current: 2 x 5 A (short-circuit proof, thermal-overload proof for both channels together) Resolution: max. 10 bit current, 16 bit speed Encoder input signal: 5…24 V DC, typ. 5 mA, single-ended Pulse frequency: max. 400,000 increments/s (with 4-fold evaluation) Current consumption power contacts: typ. 50 mA Current consumption K-bus: typ. 100 mA Bit width in the process image: 48 inputs/outputs: 2 x 16 bit data, 2 x 8 bit control/status Electrical isolation: 500 V (K-bus/field potential) Weight: approx. 100 g Operating/storage temperature: 0…+55 °C/-25…+85 °C Relative humidity: 95 %, no condensation Vibration/shock resistance conforms to: EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to: EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/see documentation Pluggable wiring for all KSxxxx Bus Terminals Approvals/markings: CE, UL
