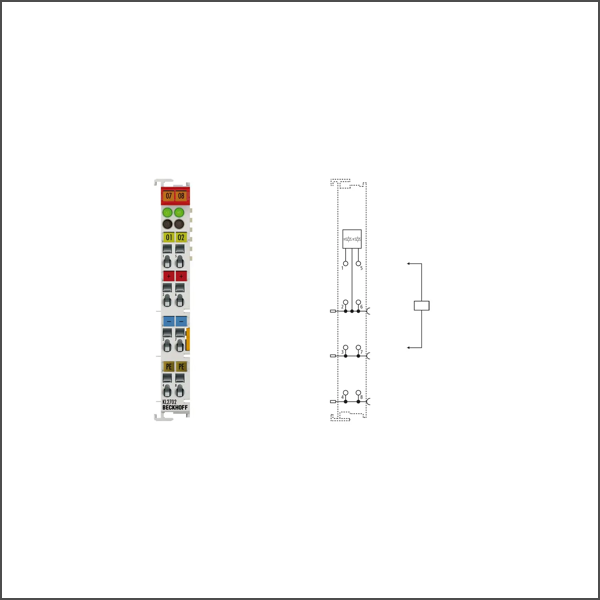

KL2702-0002 Bus Terminal
SKU: KL2702-0002
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
2-channel solid state load relay up to 230 V AC/DC, 2 A, mutually locked (no UL, GL or Ex approval)
Buy currently uses Select Automation shop pricing and checkout.
Number of outputs: 2 x make contacts, mutually locked
Nominal voltage: 0…230 V AC/DC
Max. output current: 2 A steady load per channel
Peak current: 2.5 A (20 s), 7.5 A (100 ms)
Contact resistance: 0.3 Ω typ., 0.4 Ω max.
Switch-on time: 0.2…0.4 ms
Switch-off time: 5…8 ms
Residual voltage: (300 mΩ)
Current consumption K-bus: typ. 50 mA
Approvals/markings: CE
