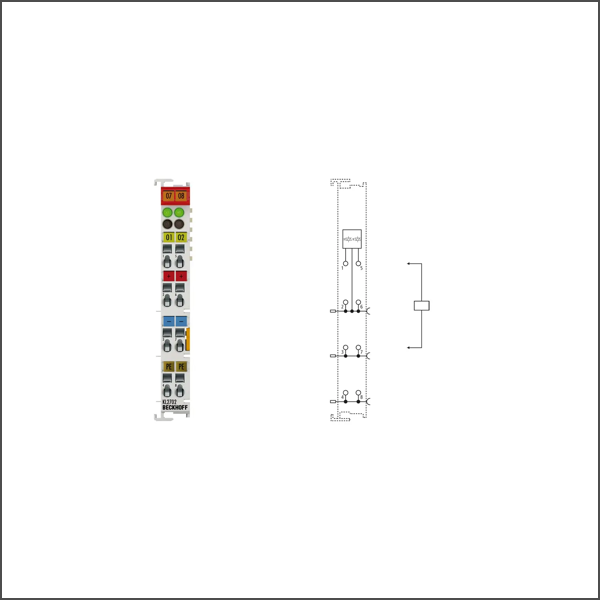

KL2702-0020 Bus Terminal
SKU: KL2702-0020
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
2-channel solid state load relay up to 230 V AC/DC, 1.5 A (no UL, GL or Ex approval)
Buy currently uses Select Automation shop pricing and checkout.
Connection technology: 2-/3-/4-wire
Number of outputs: 2 x make contacts
Nominal voltage: 0…230 V AC/DC
Load type: ohmic, inductive
Max. output current: 1.5 A steady load per channel
Rotating field frequency: DC…100 Hz
Surge voltage protection: from 400 V AC
Peak current: 2.5 A (20 s), 7.5 A (100 ms
Contact resistance: 0.3 Ω typ., 0.4 Ω max.
Switch-on time: 0.2…0.4 ms
Switch-off time: 5…8 ms
Switch-on delay: 320 µs
Switch-off delay: 6.2 ms
Residual voltage: (200 mΩ)
Electrical isolation: 500 V (K-bus/field voltage), 2500 V AC (1 min.)
Leakage current (OFF state):
