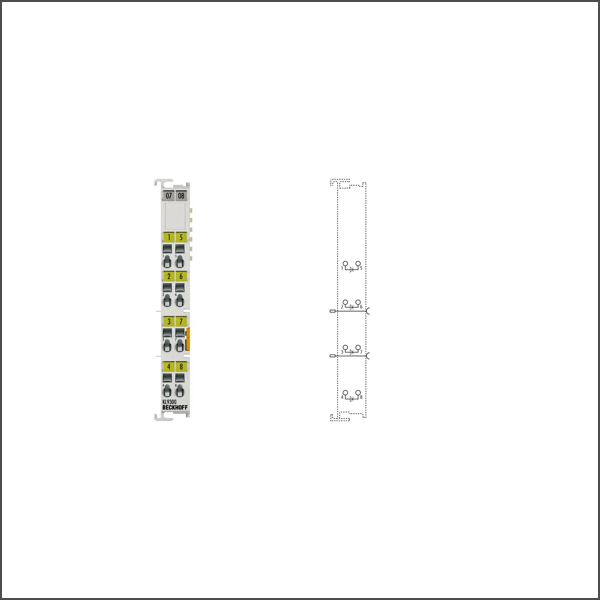

KL9300 Diode array terminal
SKU: KL9300
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The KL9300 Bus Terminal contains four potential-free diodes that can be used as free-wheeling or decoupling diodes. Through direct integration into the Bus Terminal assembly, the compact design of the Bus Terminal is retained for the whole application. Wiring is simplified significantly.
Buy currently uses Select Automation shop pricing and checkout.
Number of diodes: 4
Interconnection: potential-free
Nominal cut-off voltage: 1000 V (diodes)
Output current: 1 A on each diode
Peak current: 2.5 A (100 ms)
Voltage drop: typ. 0.7 V
Isolation voltage (channel/channel): < 200 V
Electrical isolation: 1500 V (K-bus/field)
Weight: approx. 50 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/variable
Pluggable wiring: for all KSxxxx Bus Terminals
Approvals/markings: CE, UL, ATEX, IECEx
Ex marking: ATEX: II 3 G Ex nA IIC T4 Gc/ IECEx: Ex ec IIC T4 Gc
