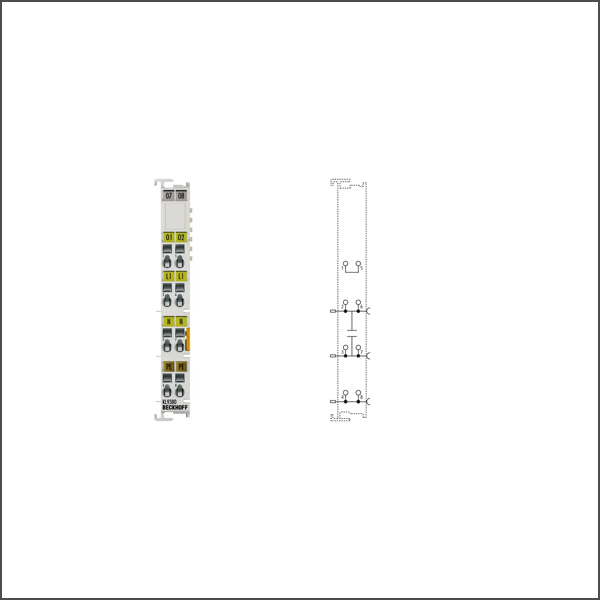

KL9380 Mains filter terminal for dimmers
SKU: KL9380
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The KL9380 feed and filter terminal protects downstream Bus Terminals from high-energy and high-frequency interference pulses from the 230 V AC mains supply.
Buy currently uses Select Automation shop pricing and checkout.
Current load: ≤ 10 A
Nominal voltage: arbitrary up to 230 V AC
Capacity: approx. 1 µF
PE contact: yes
Connection facility to additional power contact: 2
K-bus, looped through: yes
Bit width in the process image: 0
Housing width: 12 mm
Weight: approx. 50 g
Side by side mounting on Bus Terminals with power contact: yes
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Approvals/markings: CE
