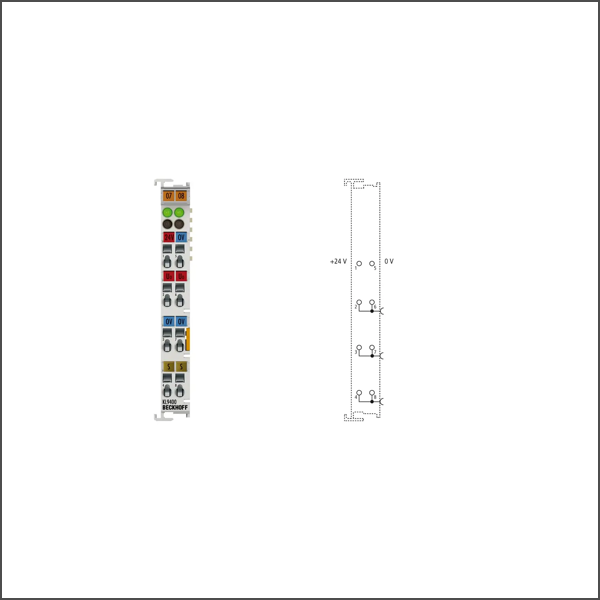

KL9400 Power supply unit terminal for the K-bus
SKU: KL9400
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The KL9400 power supply unit terminal is used to refresh the K-bus. Data is exchanged between the Bus Coupler and Bus Terminal over the K-bus.
Buy currently uses Select Automation shop pricing and checkout.
Input voltage: 24 V DC (-15 %/+20 %)
Output voltage: 5 V DC
Output current: 2 A for K-bus supply
Power contacts: max. 24 V DC/max. 10 A
Short-circuit proof: yes
Weight: approx. 65 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/variable
Pluggable wiring: for all KSxxxx Bus Terminals
Approvals/markings: CE, UL, ATEX, IECEx, DNV GL
Ex marking: ATEX: II 3 G Ex nA IIC T4 Gc/ IECEx: Ex ec IIC T4 Gc
