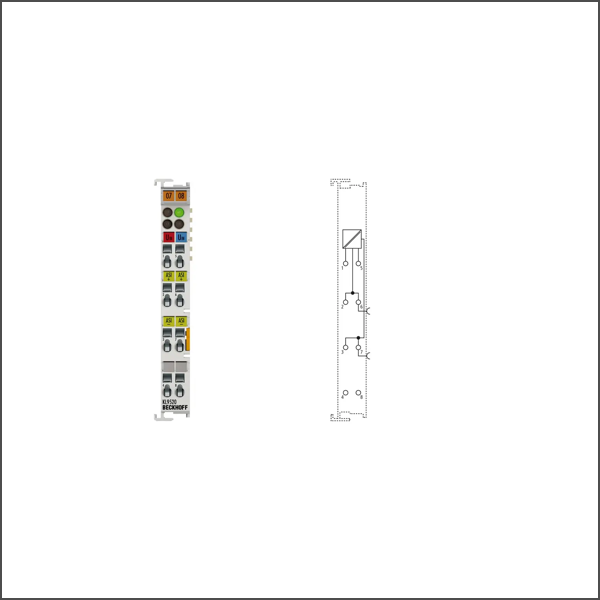

KL9520 AS-Interface potential feed terminal with filter
SKU: KL9520
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The KL9520 potential feed terminal uncouples the input and output signal through an integrated filter and enables the supply of AS-Interface networks from standard power supply units or another AS-Interface network.
Buy currently uses Select Automation shop pricing and checkout.
Input voltage: up to 35 V DC
Output voltage: up to 35 V DC
Current load: max. 2 A
Configuration: no address or configuration setting
Special features: no electrical isolation
Weight: approx. 90 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/variable
Pluggable wiring: for all KSxxxx Bus Terminals
Approvals/markings: CE
