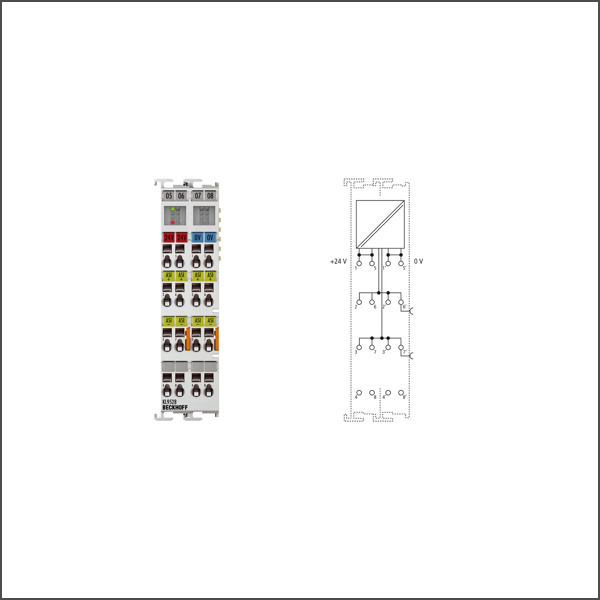

KL9528 AS-Interface power supply terminal
SKU: KL9528
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The KL9528 power supply terminal generates a 30 V DC output voltage from the 24 V DC control voltage with high-frequency decoupling for the operation of an AS-Interface network.
Buy currently uses Select Automation shop pricing and checkout.
Input voltage: 21…28.8 V DC
Output voltage: 30 V DC (+5 %/-5 %)
Output current: max. 1.25 A
Short-circuit current: max. 1.3 A
Efficiency: approx. 95 %
K-bus length: 2 inputs, 2 outputs
Current consumption K-bus: typ. 10 mA
Short-circuit proof: yes, automatic restart
Insulation voltage input/output: none
Insulation voltage: 1,500 V AC constant load field/K-bus
Weight: approx. 150 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/variable
Pluggable wiring: for all KSxxxx Bus Terminals
Approvals/markings: CE
