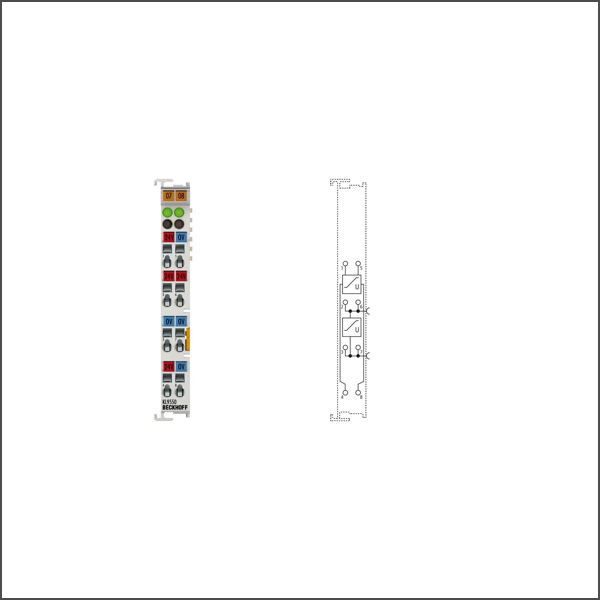

KL9550 System terminal
SKU: KL9550
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The KL9550 system terminal contains an overvoltage filter for the 24 V field and system supply. The filter protects the Bus Terminal from line-bound surge voltages that can occur due to high-energy disturbances such as switching overvoltages at inductive consumers or lightning strikes at the supply lines.
Buy currently uses Select Automation shop pricing and checkout.
Nominal voltage: 24 V DC (-15 %/+20 %)
Surge filter field supply: yes
Surge filter system supply: yes
Rated current field supply: ≤ 10 A
Rated current system supply: ≤ 0.5 A
Weight: approx. 50 g
Operating/storage temperature: -25…+60 °C/-40…+85 °C
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/variable
Pluggable wiring: for all KSxxxx Bus Terminals
Approvals/markings: CE, UL, ATEX, IECEx, DNV GL
Ex marking: ATEX: II 3 G Ex nA IIC T4 Gc/ IECEx: Ex ec IIC T4 Gc
