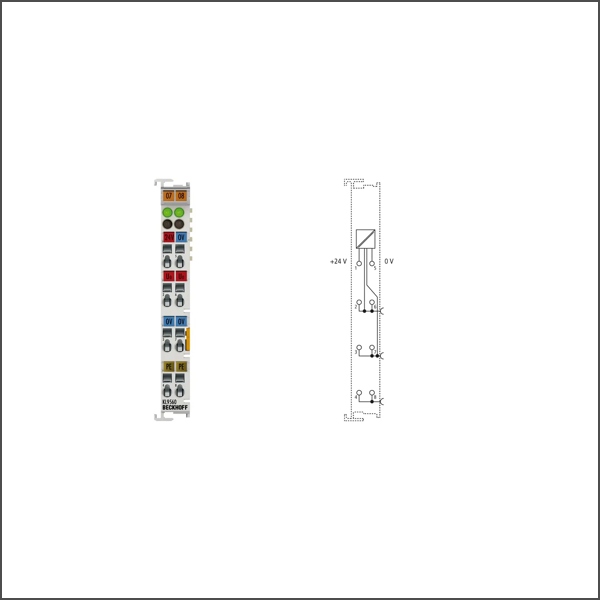

KL9560 Power supply unit terminal
SKU: KL9560
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The KL9560 power supply unit terminal generates an electrically isolated output voltage from the 24 V DC input voltage, which can be accessed at the terminal. The following Bus Terminals are also supplied with this voltage via the power contacts.
Buy currently uses Select Automation shop pricing and checkout.
Input voltage: 24 V DC (-15 %/+20 %)
Output voltage: 24 V DC (-15 %/+5 %)
Output current: ≤ 0.1 A
Short-circuit current: approx. 0.15 A
Efficiency: approx. 85 %
Diagnostics in the process image: yes
Short-circuit proof: yes, automatic restart
Insulation voltage input/output: 500 V AC permanent load
Insulation voltage: 1,500 V AC constant load field/K-bus
Residual ripple: no data
Special features: analog voltage with electrical isolation
Weight: approx. 65 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/variable
Pluggable wiring: for all KSxxxx Bus Terminals
Approvals/markings: CE, UL, ATEX, IECEx, DNV GL
Ex marking: ATEX: II 3 G Ex nA IIC T4 Gc/ IECEx: Ex ec IIC T4 Gc
