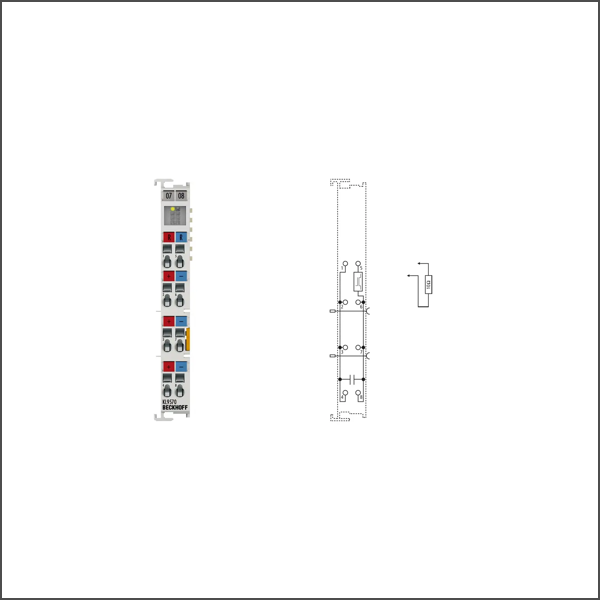

KL9570 Buffer capacitor terminal
SKU: KL9570
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The KL9570 Bus Terminal contains high-performance capacitors for stabilizing supply voltages. The KL9570 can be used in conjunction with KL2531/KL2541 stepper motor terminals and KL2532/KL2552 DC motor terminals.
Buy currently uses Select Automation shop pricing and checkout.
Nominal voltage: 50 V
Capacity: 500 µF
Ripple current (max.): 10 A @ 100 kHz
Internal resistance: < 20 mΩ @ 100 kHz
Surge voltage protection: > 56 V
Recommended braking resistor: ZB8110
Overvoltage control range: ±2 V
Braking resistor clock rate: load-dependent, 2-point control
Electrical isolation: 1500 V (K-bus/field potential)
Weight: approx. 65 g
Operating/storage temperature: 0…+55 °C/-25…+85 °C
Relative humidity: 95 %, no condensation
Vibration/shock resistance: conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission: conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.: IP20/variable
Pluggable wiring: for all KSxxxx Bus Terminals
Approvals/markings: CE, ATEX, IECEx
Ex marking: ATEX: II 3 G Ex nA IIC T4 Gc/ IECEx: Ex ec IIC T4 Gc Can also be used with Motion-specific accessories with Brake resistorsCan also be used with Motion-specific accessories with Brake resistors
