400W Economic Servo 230V AC RS-422 (Modbus) Combined Functionality (S/NH or P) Servo Types
SKU: L7CA004U
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

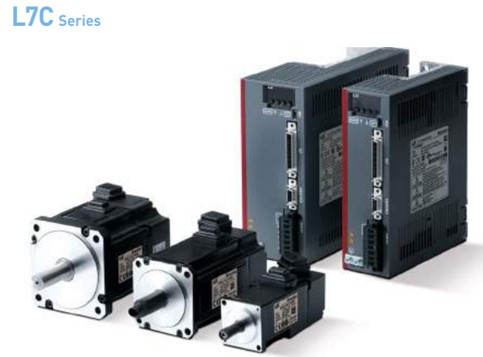

L7C Series:
Unification of Control Power and Main Power.
Power unification for the power board and integrated control board.
Drive Line-up: 0.1–1 kW for single-phase AC220V support.
Power is unified for the integrated control board and power board.
Compatibility with the existing L7S I/O pin map.
Maintain the speed/position control cycle (5 kHz) and the current control cycle (10 kHz).
There is now an indexing mode of operation and 1MB of enhanced memory.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage: 3 Phase 200~230 VAC.
Strength: 400W.
Communication Protocol: Economic I/O Type.
Communication Protocol: Modbus RTU.
Communication Protocol: USB / RS-422.
Pulse Input: 1[Mpps] line driver / 200[kpps] open collector.
Product Category: AC Servo Drive.
Rated current: 3.0A.
Peak current: 9.0A.
Encoder type: Quadrature (incremental), Biss-B, Biss-C (Absolute, incremental).
Speed control range: Max. 1:5000.
Frequency response: Max. 1(kHz) or above (when using 19-bit serial encoder).
Input frequency: 1 (Mpps), line driver/ 200 (kpps), open collector.
Operating temperature: 0~50°C/ -20~65°C.
Operating humanity: below 80% RH/ Below 90% RH (avoid dew-condensation).
Environment: Indoor, avoid corrosive, inflammable gas or liquid and electrically conductive dust.
