5kW Servo 400V Ethercat-Network Universal Enc Cia402 Drive Profile
SKU: L7NHB050U
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

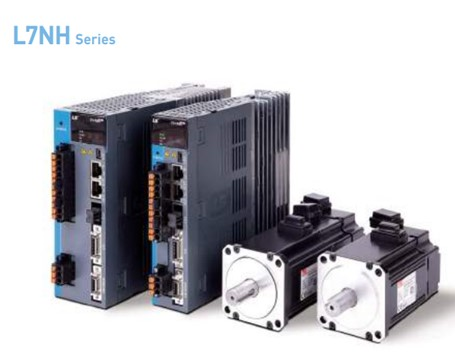

L7NH Series:
Control in real time using Ether CAT.
Fast synchronization method and real-time capability.
Increased Ether CAT communication speed (supporting a minimum of 250us DC).
Assisting FoE, EoE, and CoE.
Increased Frequency of Speed Response (1 kHz).
Support a range of encoder drives and motors.
Supporting motor drive (supporting third-party motors) and rotary DD.
In quadrature, BiSS-C Tamagawa EnDat 2.2 Resolver for Serial Abs.
Enhanced Performance of Control.
A higher control bandwidth.
Offering a 4-phase notch filter.
Real-time FET control of vibration.
Real-time gain adjustment feature.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
5kW Servo 400V.
Ether cat-Network.
Universal Enc.
Cia402 Drive Profile.
Main input power supply: 3 phase AC 380~480(V) (-15~+10%), 50~60(Hz).
Control input power supply: Single phase AC 380~480(V) (-15~+10%), 50~60(Hz).
Rated current: 17.5A.
Peak current: 47.25A
Encoder type: Quadrature (incremental), Biss-B, Biss-C (absolute, incremental), Tamagawa serial (absolute, incremental), EnDat 2.2, Sinusoidal, Analog Hall.
Speed control range: max. 1:5000.
Frequency response: max. 1 kHz or above (when the 19-bit serial encoder is applied).
Safety function: 2 Input channels (STO1, STO2), 1 Output channel (EDM±).
Operating temperature: 0~50°C/ -20~70°C.
Operating humidity: below 80% RH / Below 90% RH (avoid dew-condensation).
Environment: Indoor, avoid corrosive, inflammable gas or liquid and electrically conductive dust.
