1kW Servo 230V Ethercat 2 x Enc.Closed-Loop Univ. Enc Cia402 Profile
SKU: L7NHFA010U
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

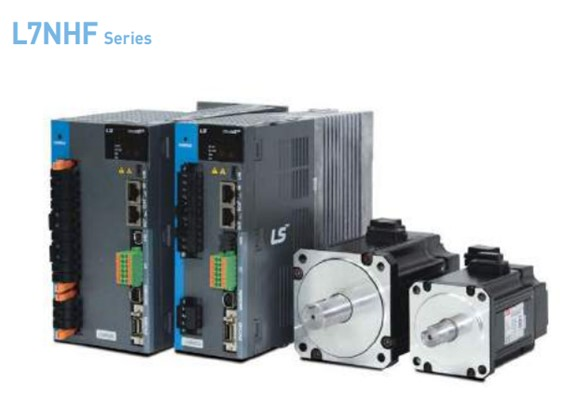

L7NHF Series:
Control in real time using Ether CAT.
Fast synchronization method and real-time capability.
Supporting FoE, EoE, and CoE.
Better Frequency Response (1 kHz) for Speed.
Faster communication because of the use of 16-bit buses.
Increased speed of chip communication.
Increased speed of Ether CAT connectivity.
Complete closed loop control.
Select from dual feedback control, fully closed loop control, and semi-closed loop control.
Quick response is possible with both internal and external encoder position values when using
fully closed-loop control.
High precision control is made possible throughout machine operation with fully closed-loop control.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
1kW Servo 230V.
Ether cat.
2 x Encoder.
Closed-Loop.
Universal Encoder.
Cia402 Profile.
Main input power supply: 3 phase AC 380~480(V) (-15~+10%), 50~60(Hz).
Control input power supply: Single phase AC 380~480(V) (-15~+10%), 50~60(Hz).
Rated current: 6.75A.
Peak current: 20.25A.
Encoder A type: Quadrature (incremental), Biss-B, Biss-C (absolute, incremental), Tamagawa serial (absolute, incremental), EnDat 2.2, Sinusoidal, Analog Hall.
Encoder B type: Quadrature (incremental), SSI Sinusoidal, Analog Hall (Analog to BiSS converter).
Speed control range: max. 1:5000.
Frequency response: max. 1 kHz or above (when the 19-bit serial encoder is applied).
Safety function: 2 Input channels (STO1, STO2).
Operating temperature: 0~50°C/ -20~70°C.
Operating humidity: below 80% RH / Below 90% RH (avoid dew-condensation).
Environment: Indoor, avoid corrosive, inflammable gas or liquid and electrically conductive dust.
