800W 230V Servo Positioning / Indexing Universal Enc RS-422 (Modbus)
SKU: L7PA008U
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

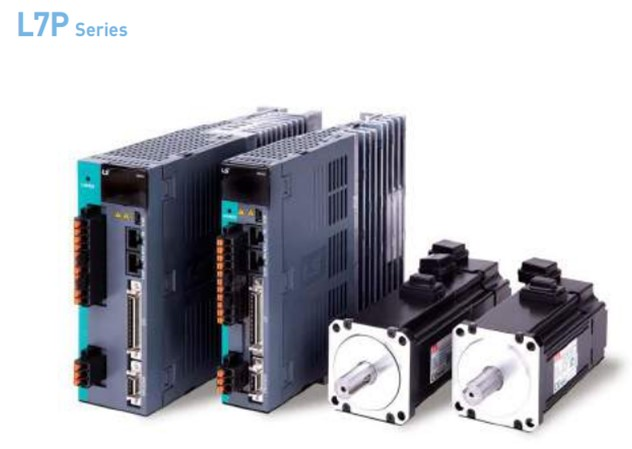

L7P Series:
Supplying a single-axis position determination module with a built-in program function.
Supporting pulse input for position control mode.
Mode of position control.
Useful even without an upper controller.
Protocol for Modbus RTU (RS-422).
Support a range of encoder drives and motors.
Supporting motor drive (supporting third-party motors) and rotary DD.
In quadrature, BiSS-C Tamagawa Endat 2.0 Serial Abs.
Enhanced Performance of Control
A higher control bandwidth.
Offering a 4-phase notch filter.
Real-time FET control of vibration.
Real-time function for adjusting gain.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
800W 230V Servo.
Positioning / Indexing.
Universal Enc.
RS-422 (Modbus).
Pulse / Analogue Inputs.
Main input power supply: 3 phase AC200~230(V) (-15~+10%), 50~60(Hz).
Control input power supply: Single phase AC200~230(V) (-15~+10%), 50~60(Hz).
Rated current: 5.2A.
Peak current: 15.6A.
Encoder type: Quadrature (incremental), BiSS-B, BiSS-C (absolute, incremental), Tamagawa serial (absolute, incremental), EnDat 2.2 Sinusoidal Analog Hall.
Speed control range: Max. 1:5000.
Frequency response: Max. 1(kHz) or above (when using 19bit serial encoder).
Input frequency: 1 (Mpps), line drive/ 200 (kpps), open collector.
Analog input: total 2 channels, Analog speed override and torque command input: -10(V)~+10(V).
Analog output: Total 2 channels, 15 function inputs can be selectively allocated.
Operating temperature: 0~50°C / -20~70°C.
Operating humidity: below 80%RH/ below 90% RH (avoid dew-condensation).
Environment: Indoor, avoid corrosive, inflammable gas or liquid and electrically conductive dust.
