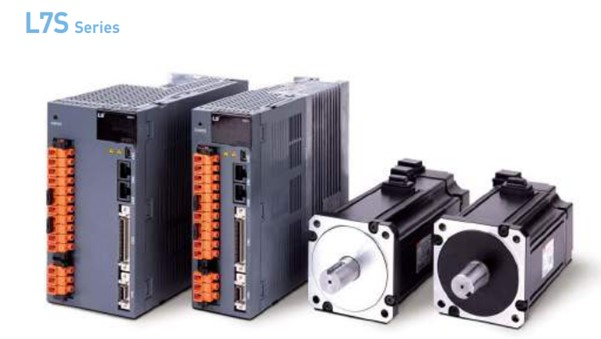

      1 kW Servo 220V AC RS-422 Pulse Following/Analogue Control Serial (Abs)

      SKU: L7SA010B

      Out of stock

      Availability: Out of Stock

      Short Description
      Pricing available on request L7S Series: Easy Gain Adjustment with Automated Inertia Calculation. Easy-Setting Built-in Panel Operator. Numerous I/O contacts and multiple functions (ten contacts for digital input) Eight contacts are output digitally; two contacts are output analogically. CE and RoHS-certified. The function of warning and protection for drives. Serial Type Encoder with High Resolutions (19-Bit BiSS). Increased Frequency of Speed Response (1 KHz).
      L7SA010B
      Alternative image 1
      Specifications: Encoder Motors. Power: 1.0 kW. Input Supply Voltage: 3 Phase 200 ~ 230 V AC (-15% ~ +10%) 50 ~ 60[Hz]. Control Supply Voltage: 1 Phase 200 ~ 230 V AC (-15% ~ +10%) 50 ~ 60[Hz]. Continuous Output Current Rating: 6.75 A. Peak Current: 20.25 A. Size: 169 x 58 x 197 [mm]. Protection class: IP20. Rated current: 6.75A. Peak current: 20.25A. Encoder type: Quad. Type incremental line driver 2,000~10,000 (P/R) Serial type 18 bit (100WC M8 only), 19-bit, 20 bit (DD motor only). Encoder: Serial BiSS encoder and quadrature encoder supported. Encoder output type: Random pre-scale output through FPGA (Max. 6.4Mpps). Input power: Main power supply: 3 phase AC200 ~230 (V) -15~+10 (%), 50~60 (Hz). Input power: Control power supply: single phase AC200~230(V) -15~+10(%), 50~60(Hz). Analog input range: DC -10~10(V). Analog input resolution: 12 (bit). Analog output range: DC -10~10(V). Analog output resolution: 12 (bit). RS-422 Communication: Accessible to PC software and the RS422 server. USB Communication: Status monitoring, JOG operation, parameter upload/download are available with PC software. Operating temperature: 0~50°C/-20~70°C. Environment: indoor, avoid corrosive, inflammable gas or liquid and electrically conductive dust. Speed control range: Max. 1:5000. Frequency response: Max. 1 (kHz) or above (when using 19-bit encoder). Speed command: DC -10~10V (Reverse rotation in case of negative voltage).
