2kW Servo 220V AC Pulse / Analogue Control Pulse Enc. Motors
SKU: L7SA020A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

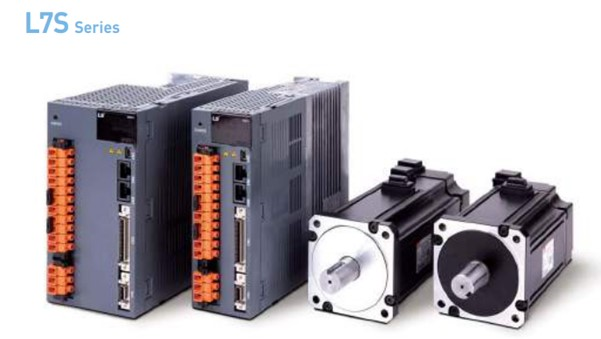

L7S Series:
Easy Gain Adjustment with Automated Inertia Calculation.
Easy-Setting Built-in Panel Operator.
Numerous I/O contacts and multiple functions (ten contacts for digital input) Eight contacts are output digitally; two contacts are output analogically.
CE and RoHS-certified.
The function of warning and protection for drives.
Serial Type Encoder with High Resolutions (19-Bit BiSS).
Increased Frequency of Speed Response (1 KHz).
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Supply voltage: 3 Phase 220VAC (1 Phase 220VAC).
Encoder Type: incremental.
Power: 2 kW.
Communication Protocol: Standard I/O.
Rated current: 13.5A.
Peak current: 40.5A.
Encoder type: Quad. Type incremental line driver 2,000~10,000 (P/R) Serial type 18 bit (100WC M8 only), 19-bit, 20 bit (DD motor only).
Encoder: Serial BiSS encoder and quadrature encoder supported.
Encoder output type: Random pre-scale output through FPGA (Max. 6.4Mpps).
Input power: Main power supply: 3 phase AC200 ~230 (V) -15~+10 (%), 50~60 (Hz).
Input power: Control power supply: single phase AC200~230(V) -15~+10(%), 50~60(Hz).
Analog input range: DC -10~10(V).
Analog input resolution: 12 (bit).
Analog output range: DC -10~10(V).
Analog output resolution: 12 (bit).
RS-422 Communication: Accessible to PC software and the RS422 server.
USB Communication: Status monitoring, JOG operation, parameter upload/download are available with PC software.
Operating temperature: 0~50°C/-20~70°C.
Environment: indoor, avoid corrosive, inflammable gas or liquid and electrically conductive dust.
Speed control range: Max. 1:5000.
Frequency response: Max. 1 (kHz) or above (when using 19-bit encoder).
Speed command: DC -10~10V (Reverse rotation in case of negative voltage).
