7.5 kW Servo 3-Ph 400V RS-422 Pulse Following/Analogue Control Serial (Abs.)
SKU: L7SB075B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request

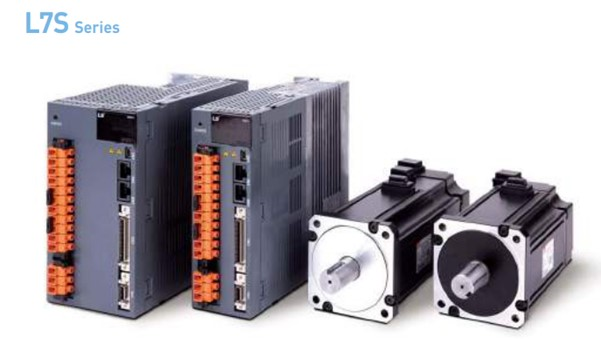

L7S Series:
Easy Gain Adjustment with Automated Inertia Calculation.
Easy-Setting Built-in Panel Operator.
Numerous I/O contacts and multiple functions (ten contacts for digital input) Eight contacts are output digitally; two contacts are output analogically.
CE and RoHS-certified.
The function of warning and protection for drives.
Serial Type Encoder with High Resolutions (19-Bit BiSS).
Increased Frequency of Speed Response (1 KHz).
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Power: 7.5 kW.
Input Supply Voltage: 3 Phase 380 ~ 480 V AC (-15% ~ +10%) 50 ~ 60[Hz].
Control Supply Voltage: 1 Phase 380 ~ 480 V AC (-15% ~ +10%) 50 ~ 60[Hz].
Size: 330 x 182.4 x 177.5 [mm].
Protection class: IP20.
Rated current: 22.8A.
Peak current: 57A.
Encoder type: serial, 17-bit, 19-bit, 21 bits.
Speed control range: Max. 1:5000.
Frequency response: Max. 1 (kHz) or above (when the 19-bit serial encoder is applied).
Speed command: DC -10(V)~+10(V) (reverse rotation in case of negative voltage).
Input frequency 1Mpps, line driver/200Kpps, open controller.
Analog input/output range: DC 0~10V, Resolution: 12 bit.
RS-422 Communication: Accessible to PC software and the RS422 server.
USB Communication: Status monitoring through PC software, JOG operation and parameter uploading/downloading are possible.
Random pre-scale output through FPGA (Max. 6.4 Mpps).
Operating temperature: 0~50°C/-20~70°C.
Operating humanity: Below 80% RH/Below 90% RH (avoid dew-condensation).
Environment: Indoor, avoid corrosive, inflammable gas or liquid and electrically conductive dust.
