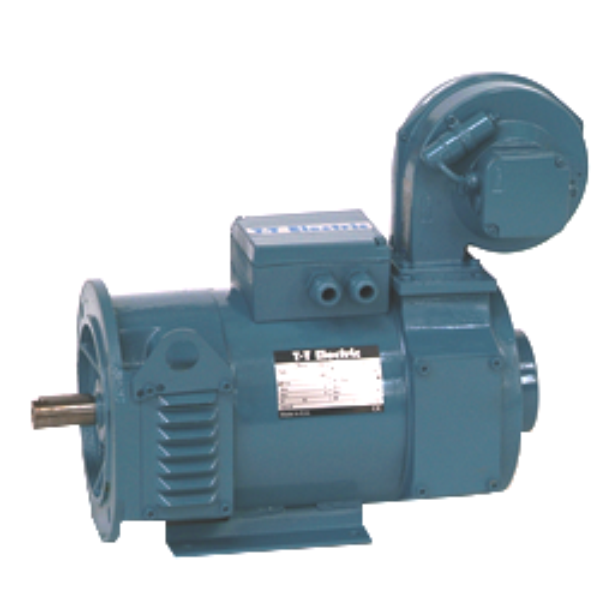

2-Pole DC Motor with 2080 Frame Size

Name: 2-Pole DC Motor with 2080 Frame Size
Brand: T-T Electric
SKU: LAK2080

SKU: LAK2080

Out of stock

Availability: Out of Stock

Pricing available on request

The T-T Electric DC Motor LAK2080 is a 2-pole, completely laminated motor that provides a flexible and effective industrial solution.
It belongs to the LAK 2000 series of motors, which have torques ranging from 4 to 75 Nm and outputs between 0.5 and 20 kW.
Because of its exceptional commutation, low induced voltage, and great efficiency, the LAK2080 motor is well-known for requiring little wear on the brush and commutator.
It offers great mechanical and electrical flexibility and is made to run at high armature voltages.
The motor can be used in a variety of applications because it comes with many mounting configurations and cooling choices.

Output Power: 0.5-20 Kw.
Torque: 4-75 Nm.
Poles: 2.
Frame Size: 2080.
Core Lengths: A, B, C.
Windings: Shunt, Series, Compound, Generator.
Mounting Forms: IM1001 (Horizontal foot), IM2001 (Horizontal foot and flange), IM1002 (Horizontal foot, two shaft ends), IM3001 (Horizontal flange), IM3601 (Horizontal flange, tapped holes).
Cooling Forms: IC06 (IP23) (Force ventilated), IC17 (IP23) (Single pipe ventilated), IC01 (IP23) (Self ventilated), IC37 (IP54) (Double pipe ventilated), IC410 (IP54) (Totally enclosed), IC416 (IP54) (Totally enclosed, fan cooled).
Protection: IP55.
Standards: IEC 34, IEC 72, VDE 0530, BS 4999.
Insulation Class: F.
Temperature Rise: 105°C by resistance.
Overload Capacity: LT for 15 seconds, 2.0 x nominal armature current for 30 seconds every 15 minutes.
Terminal Box Position: Standard: top mounting.
Bearings: Sealed-for-life preloaded ball bearings.
Armature Voltages: High armature voltages as standard.
