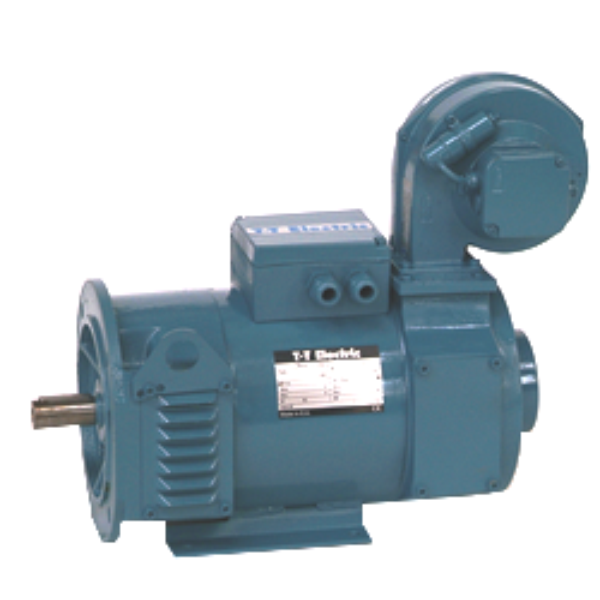

2-Pole DC Motor 2112 Frame Size, 0.5-20kW Output Power
SKU: LAK2112
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The LAK 2000 family of motors, which includes the T-T Electric DC Motor LAK2112, has torques ranging from 4 to 75 Nm and outputs between 0.5 and 20 kW.
Because of its exceptional commutation, low induced voltage, and great efficiency, the LAK2112 motor is well-known for requiring little wear on the brush and commutator.
It offers great mechanical and electrical flexibility and is made to run at high armature voltages.
The motor can be used in a variety of applications because it comes with many mounting configurations and cooling choices.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Output Power: 0.5-20 kW.
Torque: 4-75 Nm.
Poles: 2.
Frame Size: 2112.
Core Lengths: A, B, C.
Windings: Shunt, Series, Compound, Generator.
Mounting Forms: IM1001 (Horizontal foot), IM2001 (Horizontal foot and flange), IM1002 (Horizontal foot, two shaft ends), IM3001 (Horizontal flange), IM3601 (Horizontal flange, tapped holes).
Cooling Forms: IC06 (IP23) (Force ventilated), IC17 (IP23) (Single pipe ventilated), IC01 (IP23) (Self ventilated), IC37 (IP54) (Double pipe ventilated), IC410 (IP54) (Totally enclosed), IC416 (IP54) (Totally enclosed, fan cooled).
Protection: IP55.
Insulation Class: F.
Temperature Rise: 105°C by resistance.
Overload Capacity: LT for 15 seconds, 2.0 x nominal armature current for 30 seconds every 15 minutes.
Terminal Box Position: Standard: top mounting.
Bearings: Sealed-for-life preloaded ball bearings.
Armature Voltages: High armature voltages as standard.
