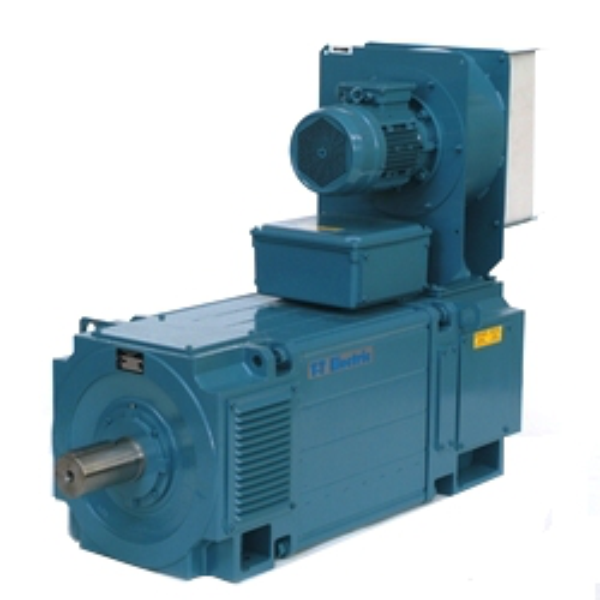

2-Pole Unicore DC Motor, 0.25kW Output Power, 2112 Frame Size
SKU: LAK2112MA
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
This Unicore DC motor, which contains motors with outputs range 25 kW and torques ranging from 4 to 75 Nm.
This type offers great durability and efficiency and is intended for industrial use.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Output Power: 0.25 kW.
Current: 0.70 A.
Voltage: 3 x 380-420 V.
Frequency: 50Hz.
Torque: 4-75 Nm.
Poles: 2.
Frame Size: 2112.
Windings: Shunt, Series, Compound, Generator.
Protection: IP55.
Insulation Class: H.
Flange Size: F215.
Temperature Rise: 105°C by resistance.
Overload Capacity: LT for 15 seconds, 2.0 x nominal armature current for 30 seconds every 15 minutes.
Terminal Box Position: Standard: top mounting.
Bearings: Sealed-for-life preloaded ball bearings.
