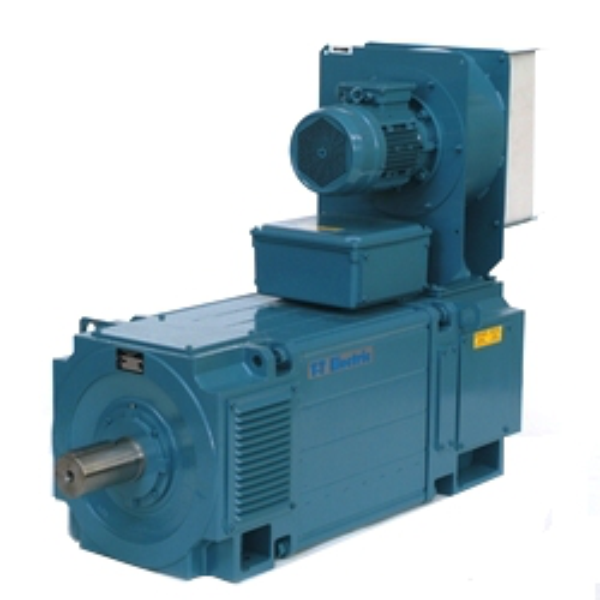

4-Pole Unicore DC Motor, 2132 Frame Size, M Core Length
SKU: LAK2132M
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A high-performance motor from the Unicore Series, the T-T Electric DC Motor, model LAK2132M, is made for industrial applications that demand dependable and effective operation.
This motor is appropriate for challenging situations because of its excellent efficiency and steady power output.
The LAK2132M guarantees a long working life and little maintenance thanks to its sophisticated design and sturdy construction.
It is perfect for usage in a variety of sectors where reliable motor performance is crucial, such as manufacturing, automation, and material handling.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Output Power: 7-500 kW
Torque: 40-4500 Nm
IEC 60034-1.
Insulation:
Class H.
Vibration class and balance:
LAK 4000 motors follow IEC 60034-14 with vibration class A as standard.
Grade B is available on request.
The motors are balanced with half key as standard.
Overload capacity:
LAK4112-4280:
160% of nominal torque for 15 sec every 5 min (or for 30 sec every 30 min).
180% of nominal current for 15 sec every 5 min (or for 30 sec every 30 min).
Terminal box position:
Standard: On right side of the motor (facing d-end).
Mounting of terminal box on top or left side on request.
Blower position:
Standard: On top of the motor at the non-drive end.
Other positions on request.
Blower is supplied without filter as standard.
Filter on request.
Mechanical data:
Inertia: 0.090 J-Kgm².
Max. Mechanical Speed: 5000 min⁻¹.
Air Volume: 435 m³/h.
Pressure Drop: 400 N/m.
