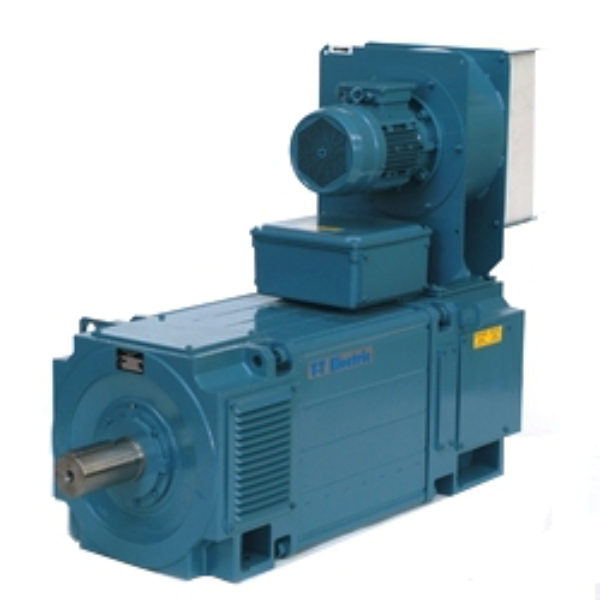

4-Pole Unicore DC Motor Square Frame, 7-500kW Output Power
SKU: LAK4112A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The well-known Unicore Series, which is noted for its dependability and robust performance in industrial applications, includes the T-T Electric DC Motor, model LAK4112A.
This motor's exceptional efficiency and consistent power output make it ideal for demanding settings.
The LAK4112A's robust design and advanced engineering ensure a long operational life and few maintenance needs.
It is suitable for a range of environments, including manufacturing, processing, and automation systems, where precision and dependability are essential.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Output Power: 7-500 kW.
Torque: 40-4500 Nm.
Protection: IP55.
Mounting Forms:
IM1001 Horizontal foot.
IM1002 Horizontal foot, two shaft ends.
IM2001 Horizontal foot and flange.
IM2011 Vertical foot and flange.
Tachos with coupling:
REO 444RT1 (60v/1000 min1).
TDP 0 .2 T4 (60v/1000 min1).
Insulation: Class H.
Standards: IEC 600341.
Overload capacity:
195% of nominal torque for 15 sec every 5 min (or for 30 sec every 30 min).
200% of nominal current for 15 sec every 5 min (or for 30 sec every 30 min).
Air volume m3/h: 270.
Pressure drop in motor N/m2: 480.
