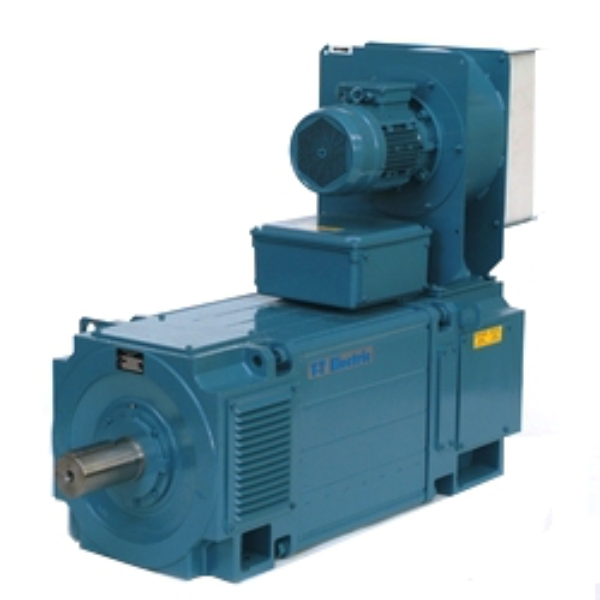

4-Pole Unicore DC Motor, Frame Size 4112, B Core Length
SKU: LAK4112B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Part of the prestigious Unicore Series, the T-T Electric DC Motor, model LAK4112B, is renowned for its outstanding durability and performance in industrial environments.
This motor is appropriate for demanding applications because of its excellent efficiency and steady power output.
The LAK4112B guarantees low maintenance and a long operational life thanks to its sophisticated design and sturdy construction.
It is perfect for many applications where accuracy and dependability are essential, such as automation systems, processing, and manufacturing.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Output Power: 7-500 kW.
Torque: 40-4500 Nm.
Poles: 4.
Frame Size: 4112.
Standards: IEC 60034-1.
Insulation: Class H.
Overload capacity:
160% of nominal torque for 15 sec every 5 min (or for 30 sec every 30 min).
180% of nominal current for 15 sec every 5 min (or for 30 sec every 30 min).
Terminal box position:
Standard: On right side of the motor (facing d-end).
Mounting of terminal box on top or left side on request.
Blower position:
Standard: On top of the motor at the non-drive end.
Other positions on request.
Blower is supplied without filter as standard.
Filter on request.
Mechanical data:
Inertia J-Kgm2: 0.050.
Max. mechanical speed (min-1): 5000.
