Unicore DC Motor, 4180 Frame Size, EA Core Length
SKU: LAK4180EA
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

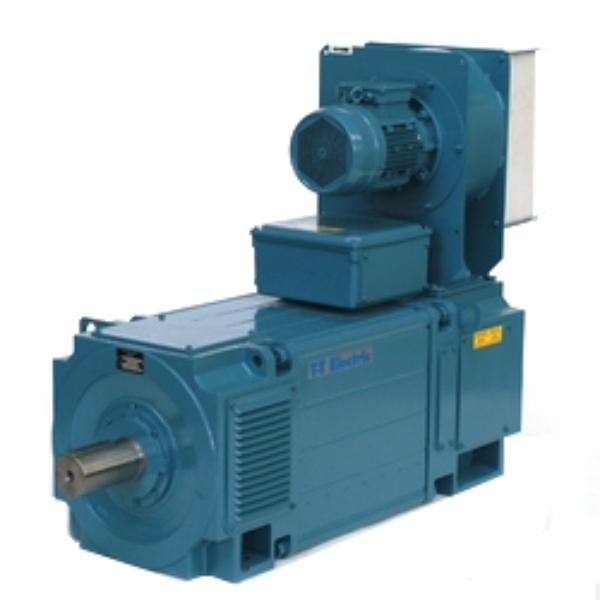

High-performance DC motors like the T-T Electric LAK4180EA are made for industrial settings where dependable and sturdy operation is essential.
The stator and armature of this motor are fully laminated, guaranteeing minimum torque ripple and superior thermal performance.
It is a flexible option for a range of industrial settings because to its small square frame design, which makes installation and maintenance simple.
The LAK4180EA has several cooling and mounting options to meet the needs of different applications, and it is constructed in accordance with IEC standards.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Output Power: 7-500 kW.
Torque: 40-4500 Nm.
Frame Size: 4180.
Number of Poles: 4.
Cooling Forms: IC06 (IP23) - Force ventilated, IC17 (IP23) - Single pipe ventilated, IC37 (IP54) - Double pipe ventilated, IC410 (IP54) - Totally enclosed, IC416 (IP54) - Totally enclosed, fan cooled, IC666 (IP54) - Air-air cooled, IC86W (IP54) - Air-water cooled.
Protection: IP55.
Mounting Forms: IM1001 - Horizontal foot, IM1002 - Horizontal foot, two shaft ends, IM2001 - Horizontal foot and flange, IM2011 - Vertical foot and flange.
