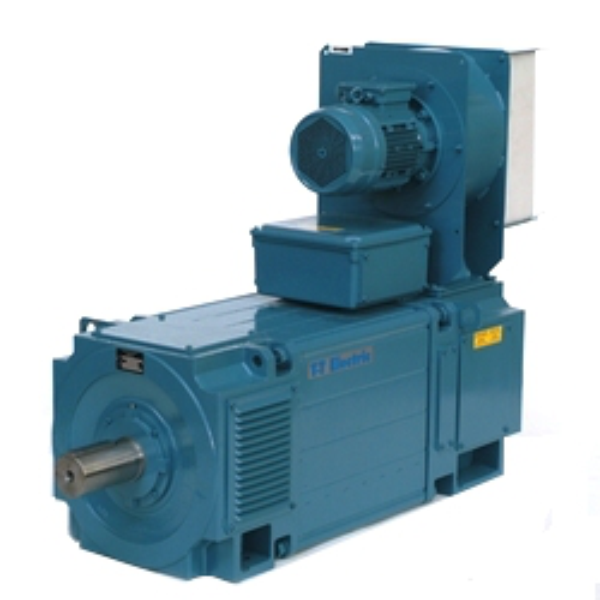

4-Pole Unicore DC Motor, 4200 Frame Size, C Core Length
SKU: LAK4200C
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The T-T Electric DC Motor, model LAK4200C, belongs to the prestigious Unicore Series and is renowned for its outstanding dependability and performance in industrial environments.
This motor is appropriate for demanding applications because of its excellent efficiency and steady power output.
The LAK4200C guarantees little maintenance and a long operational life thanks to its sophisticated design and sturdy construction.
It is perfect for many applications where accuracy and dependability are essential, such as automation systems, processing, and manufacturing.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Inertia: 0.35 J-Kgm².
Max. Mechanical Speed: 3800 min⁻¹.
Power: 132kW (177HP).
Voltage: 400V DC.
Cooling: Force Ventilated (IC06) to IP23.
Torque: 40-4500 Nm.
IEC 60034-1.
Insulation: Class H.
Vibration class and balance:
LAK 4000 motors follow IEC 60034-14 with vibration class A as standard.
Grade B is available on request.
The motors are balanced with half key as standard.
Overload capacity:
160% of nominal torque for 15 sec every 5 min (or for 30 sec every 30 min).
180% of nominal current for 15 sec every 5 min (or for 30 sec every 30 min).
Terminal box position:
Standard: On right side of the motor (facing d-end).
Mounting of terminal box on top or left side on request.
Blower position:
Standard: On top of the motor at the non-drive end.
Other positions on request.
Blower is supplied without filter as standard.
Filter on request.
