      4-Pole Unicore DC Motor, 4250 Frame Size,

      SKU: LAK4250
      Out of stock

      Availability: Out of Stock

      Short Description

      Pricing available on request

      Description:

      • High-performance DC motors like the T-T Electric LAK4250 are made for industrial settings where dependable and sturdy operation is essential.
      • The stator and armature of this motor are fully laminated, guaranteeing minimum torque ripple and superior thermal performance.
      • It is a flexible option for a range of industrial settings because to its small square frame design, which makes installation and maintenance simple.
      • The LAK4250 has several cooling and mounting choices to meet the needs of different applications, and it is constructed in accordance with IEC standards.

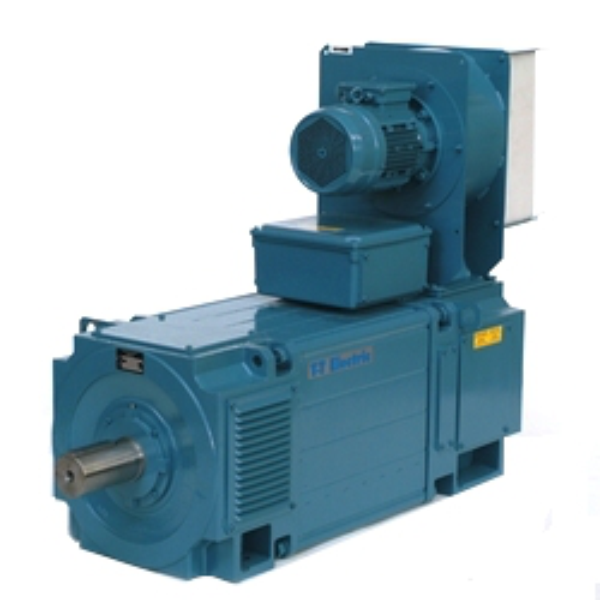

      LAK4250
      Alternative image 1

      Specifications:

      • Output Power: 7-500 kW.
      • Torque: 40-4500 Nm.
      • Frame Size: 4250.
      • Number of Poles: 4.
      • Cooling Forms: IC06 (IP23) - Force ventilated, IC17 (IP23) - Single pipe ventilated, IC37 (IP54) - Double pipe ventilated, IC410 (IP54) - Totally enclosed, IC416 (IP54) - Totally enclosed, fan cooled, IC666 (IP54) - Air-air cooled, IC86W (IP54) - Air-water cooled.
      • Protection: IP55.
      • Mounting Forms: IM1001 - Horizontal foot, IM1002 - Horizontal foot, two shaft ends, IM2001 - Horizontal foot and flange, IM2011 - Vertical foot and flange.
