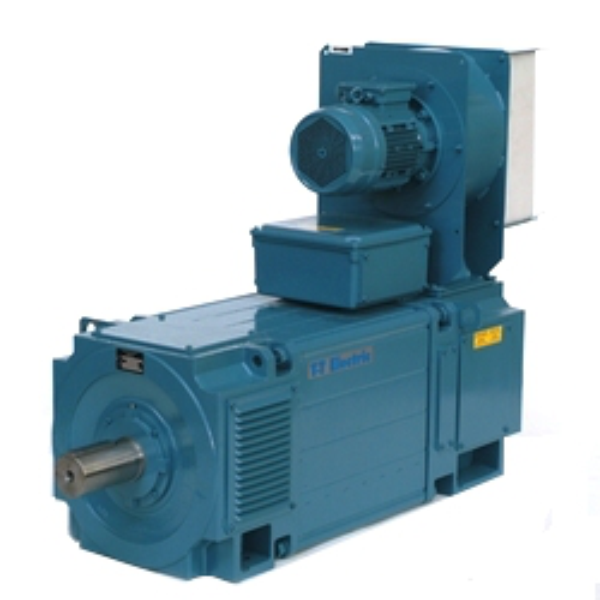

6-Pole Unicore DC Motor, 6315 Frame Size, A core Length
SKU: LAK6315A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Part of the esteemed Unicore Series, the T-T Electric DC Motor, model LAK6315A, is well-known for its exceptional durability and performance in industrial settings.
This motor's exceptional efficiency and consistent power output make it suitable for demanding applications.
The LAK6315A's robust construction and advanced design ensure minimal maintenance and a long working life.
It is ideal for a wide range of applications, including manufacturing, processing, and automation systems, where precision and reliability are crucial.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Inertia: 0.45 J-Kgm².
Max. Mechanical Speed: 3800 min⁻¹.
Power: 219kW (294HP).
Voltage: 440V DC.
Cooling: Force Ventilated (IC06) to IP23.
Insulation: Class H.
Overload capacity:
195% of nominal torque for 15 sec every 5 min (or for 30 sec every 30 min).
200% of nominal current for 15 sec every 5 min (or for 30 sec every 30 min).
Terminal box position:
Standard : on right side of the motor (facing D-end).
Mounting of terminal box on top or left side on request.
Blower position:
Standard: On top of the motor at the non-drive end.
Other positions on request.
Blower is supplied without filter as standard.
Filter on request.
