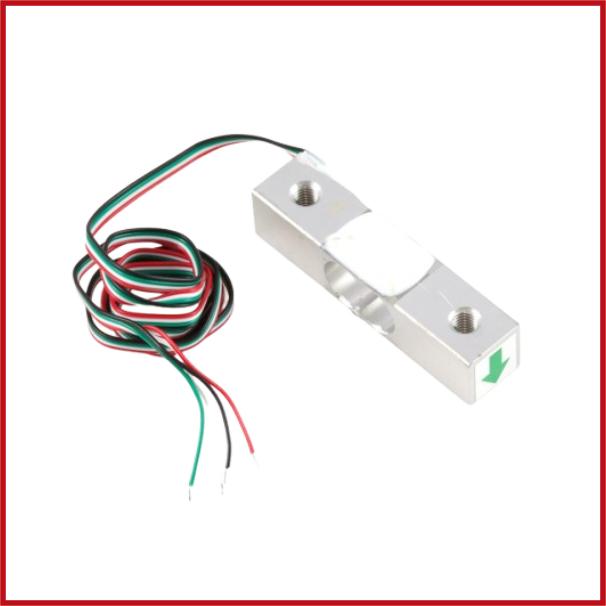

5KG Aluminum Alloy Scale Weighing Sensor Load Cell Kit For Arduino
SKU: LDC-0002-000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The 5kg Aluminium Alloy Scale Weighing Sensor is a high-precision parallel beam strain gauge load cell intended for weight and force measurements.
Made from sturdy aluminium alloy, it offers precise and dependable performance for embedded system applications, force sensing, industrial automation, and electronic weighing scales.
The sensor has a four-wire output for easy connection to a HX711 load cell amplifier and is compatible with Arduino, ESP32, Raspberry Pi, and other microcontroller platforms.
Buy currently uses Select Automation shop pricing and checkout.
Specification
Load Cell Type– Parallel Beam Strain
Capacity– 5kg
Safe Overload– 120% Capacity - (6kg)
Overload Limit (Before Damage)– 150% Capacity - (7.5kg)
Measuring Precision– 0.05%
No. of Cable Leads– 4
Cable Length– 55cm
Recommended Interfacing Module– HX711 Load Cell ADC Amplifier
Housing Material– Aluminium
Mounting Hole Size– 2 x M5 | 2 x M4
Dimensions– 55 x 13 x 13mm
