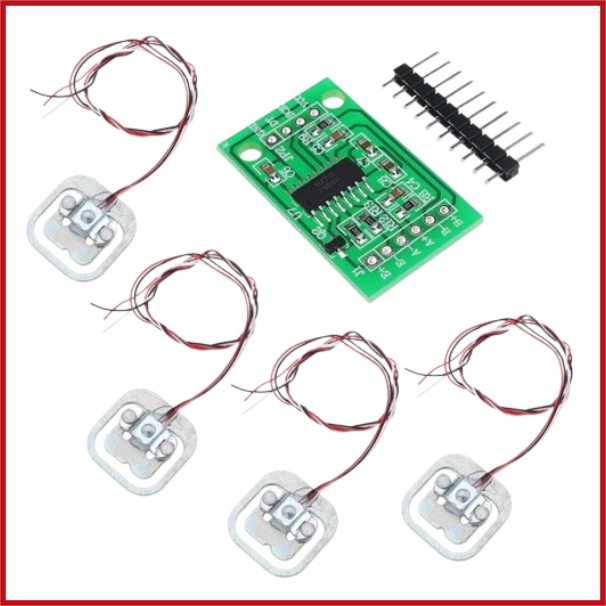

DIY 4 x 50KG Body Load Cell Weight Strain Sensor Resistance With HX711 AD Module
SKU: LDC-0004-000
Sold by Select Automation
Final price R 157.55
R 137.00 excl. VAT
Availability: In Stock (5 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
This sensor module is ideal for hobbyists and engineers building custom weighing systems.
The 50kg load cell detects strain (bending or compression) and converts it into a resistance change, which the HX711 amplifier/ADC module translates into stable digital signals.
Together, they provide a reliable, low-cost solution for measuring loads up to 50 kilograms with high sensitivity and minimal noise.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Load Cell Type: Half-bridge strain gauge sensor.
Rated Capacity: 50 kg (can be combined for higher ranges: 2 sensors = 100 kg, 4 sensors = 200 kg).
Overload Capacity:
Safe overload: 120% (≈60 kg).
Ultimate overload: 150% (≈75 kg).
Internal Resistance: 1000 Ω strain gauge.
Structure: Half-bridge (requires external resistors or multiple sensors for full bridge).
Dimensions: 34 mm × 34 mm.
HX711 Module:
24-bit ADC resolution.
Designed for load cell signal amplification.
Digital output via serial interface (compatible with Arduino, Raspberry Pi, ESP32, etc.).
