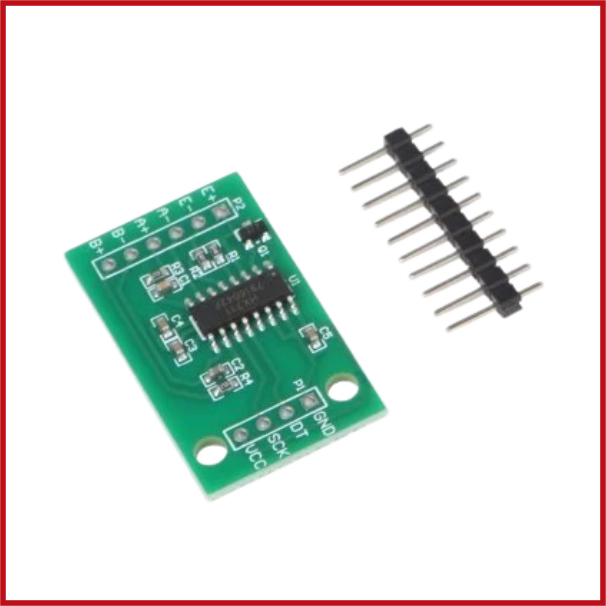

HX711 BOARD ONLY
SKU: LDC-0005-000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The HX711 Board is a 24-bit precision analogue-to-digital converter (ADC) module built primarily for use with weighing scales and load cells.
It amplifies the strain gauge load cell's very small differential signal and converts it to a digital signal that Arduino and other microcontroller platforms can read.
This board-only version comes without a load cell and is ideal for creating custom weighing and force measurement systems.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Chipset: HX711 24-bit ADC.
Input Channels: 2 differential input channels (Channel A and Channel B).
Gain Options:
Channel A: 128 or 64 gain.
Channel B: 32 gain.
Supply Voltage: 2.6V – 5.5V (commonly 5V with Arduino).
Operating Current: < 1.5 mA.
Standby Current: < 1 µA.
Interface: Serial (two-wire protocol, similar to I²C but simpler).
Output Data Rate: 10 Hz or 80 Hz selectable.
Resolution: 24-bit precision.
Dimensions (typical breakout board): ~ 34 mm × 20 mm.
Applications: Digital weighing scales, force measurement, industrial sensors, IoT monitoring.
