LED 3MM HW RED 9.8 MCD (5Pcs)
SKU: LED-0001-B03
Sold by Select Automation
Final price R 5.16
R 4.49 excl. VAT
Availability: In Stock (13 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

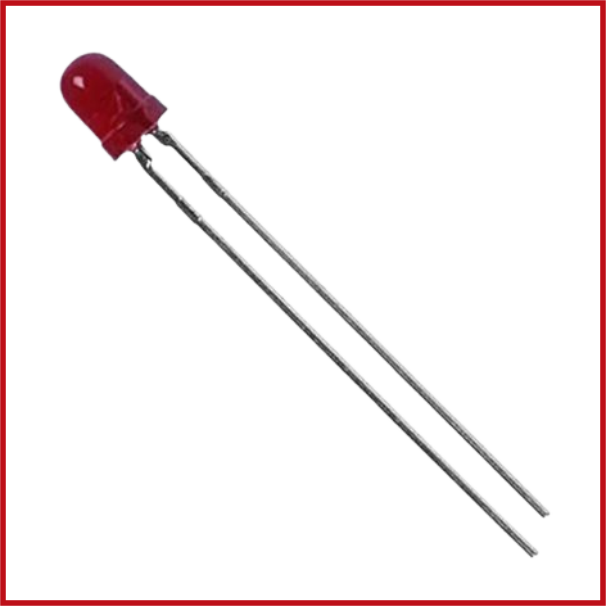

The 3mm HW Red LED is a small through-hole red LED intended for visual indication and signalling purposes.
It has a 3mm T-1 package, emits red light with a luminous intensity of 9.8mcd, and is appropriate for PCB assembly, indication panels, control equipment, and general electrical circuits.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: LED.
LED Colour: Red.
Package: T-1.
LED Diameter: 3mm.
Mounting Type: Through-Hole.
Lens Shape: Round.
Lens Type: Diffused.
Luminous Intensity: 9.8mcd.
Peak Wavelength: 635nm.
Wavelength: 625nm.
Forward Voltage: 2V.
Forward Current: 20mA.
Current Rating: 20mA.
Viewing Angle: 76°.
Minimum Operating Temperature: -40°C.
Maximum Operating Temperature: 85°C.
Polarity: Anode / Cathode.
Lead Configuration: Radial leads.
Application: PCB indicators, status lights, control panels, electronic circuits and general-purpose signalling.
Pack Quantity: 5 Pieces.
