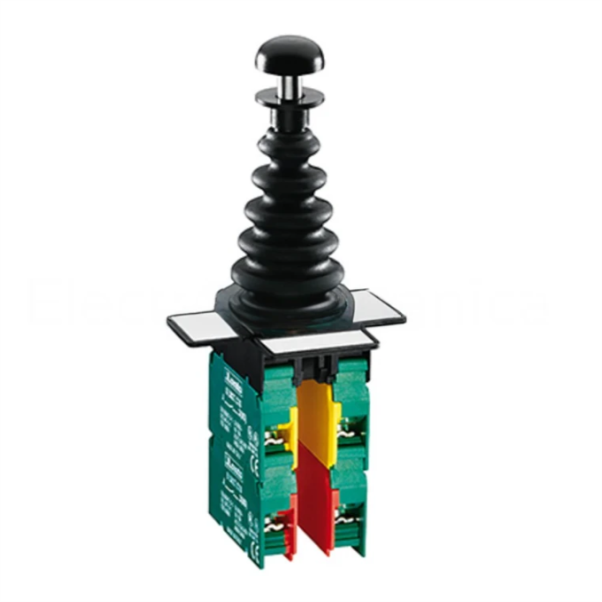

4 DIRECTION STAYPUT JOYSTICK ACTUATOR

Joystick manipulators: Materials: The plastic components are constructed of polyamide and polycarbonate, while the metal pieces are made of an alloy called Zama, which is an aluminium and zinc mixture. NBR rubber is used to make the sealing boot. Mechanical endurance: A mechanical life of one million cycles. Contact elements and mounting adapter: The joystick comes pre-assembled with both the mounting adapter and the contact elements. The mounting surface of the adapter is secured by integrated screws (T max = 0.8Nm/0.59lbft). A straightforward rotation is used to secure the joystick to the mounting adaptor.
