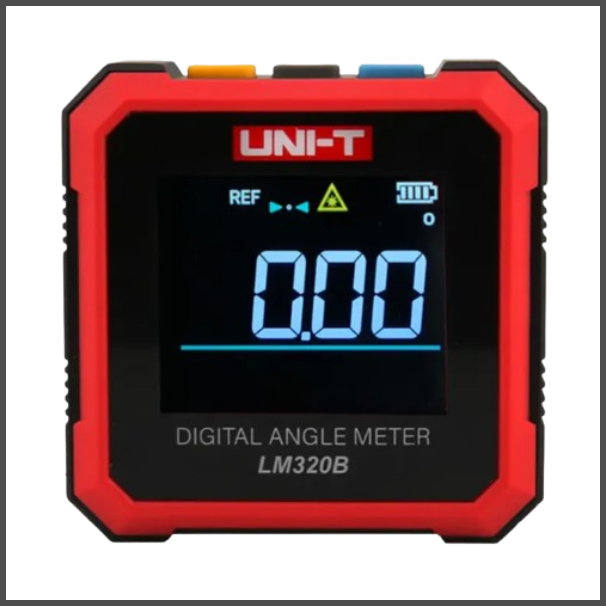

Angle Meter, LM320B, Digital Angle Meters
SKU: LM320B
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The LM320B Digital Angle Meter is a lightweight and portable digital inclinometer with a measurement range of 4 × 90°, 0.01° resolution, and ±0.2° accuracy.
Its two-sided laser design provides visual reference lines for alignment, and the four-sided magnetic base secures the meter to compatible metal surfaces.
The equipment provides relative and absolute angle measurement, 360° complete measurement, and data storage.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Digital angle measurement with 4 × 90° measurement range.
±0.2° accuracy.
0.01° resolution.
Two-side laser indication for convenient alignment.
Four-side magnetic base.
Relative and absolute angle measurement.
360° comprehensive measurement.
Data Hold function.
Portable and lightweight design.
EBTN display.
Rechargeable 3.7 V lithium battery.
Type-C charging interface.
Low-battery indication.
Automatic power-off.
Specifications:
Measurement Range: 4 × 90°.
Accuracy: ±0.2°.
Resolution: 0.01°.
Display: EBTN.
Measurement Modes: Relative / Absolute.
Comprehensive Measurement: 360°.
Laser Indication: Two-side lasers.
Magnetic Base: Four-side magnets.
Data Hold: Yes.
Battery: 3.7 V lithium battery, 300 mAh.
Charging Interface: Type-C.
Working Time: 2 hours.
Auto Power-Off: Yes.
Low-Battery Indication: Yes.
Product Dimensions: 60 × 60 × 30 mm.
