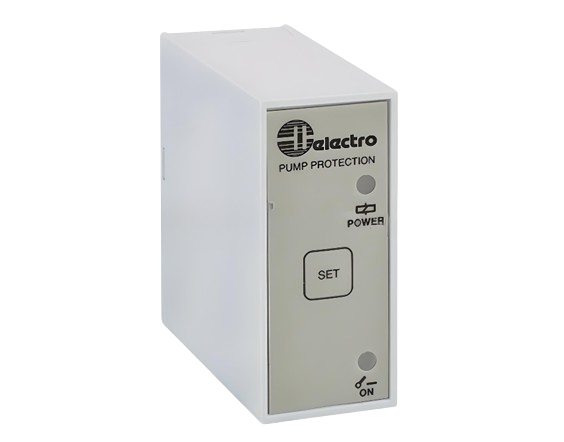

PUMP PROTECTION RELAY 230VAC, RECOVERY TIME: 6 HOURS
SKU: LP1230A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Relay for pump protection:
Installing the Electro 11 pin plug-in series of control and timing devices is simple and straightforward since they are designed to fit into a conventional 11 pin base.
Pump protection relay with microprocessor basis that can guard against all major power line problems for submersible pumps.
Under typical operating circumstances, the device calibrates itself and saves these settings in non-volatile memory.
Additionally, the machine has a reset delay built in to allow the borehole to refill itself in current circumstances.
The device will attempt three times to avoid permanently tripping with transient obstructions in the event of an overcurrent.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Protection relay based on microprocessor.
Above or below the present level of protection.
Protection against over- and under-voltage.
Ability can be chosen with the current reset delay.
Three attempts to fix the overcurrent.
Pump self-diagnosis on its own automatically.
LED indicator of every issue.
Specifications:
DESCRIPTION: Pump protection relay.
PHASE: Single.
RECOVERY HOURS: 6 hours (others on request).
CONTACT: 10A SPDT.
HYSTERESIS: 0.05.
RATED VOLTAGE: 250V.
MECHANICAL LIFE: 10x106 cycles.
PROTECTION INDEX IP: IP 20.
OPERATING TEMPERATURE: -10 to + 50°C.
STORAGE TEMPERATURE: -50 to + 85°C.
DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64.
