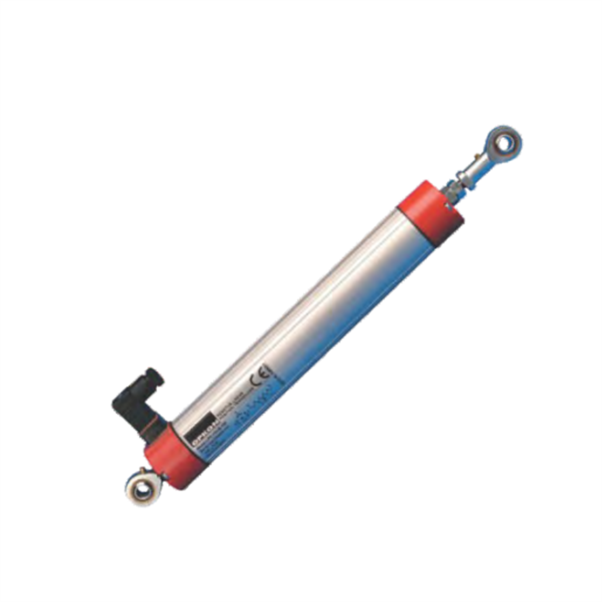

Round Body Potentiometer 50 mm stroke and 5K resistance
SKU: LPC50-5K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Transducer: LPC Long Stroke Linear Potentiometer:
Measuring range: 50–800 mm.
Long mechanical life: 100 million movements.
Excellent repeatability: <0.01mm.
limitless resolution.
5 kOhm: 50–600mm.
10 kOhm: 650...800mm.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Measurement stroke: 50 to 750 mm.
Linearity: ±0.05% (>200 mm), ±0.1% (130–200 mm), ±0.2% (75–130 mm), and ±0.5% (<75 mm).
Repeatability: <0.01 mm.
Resolution: unlimited.
Resistance: 5 kOhm: 50–600 mm.
Resistance tolerance: ± 20%.
Cursor current recommendation: <1 µA.
Maximum allowed applied voltage: 28 VDC.
Electrical connections: 4 pin connectors (standard); cable (optional).
Displacement speed: <5m/s.
Mechanical life: 100 million movements.
Case dimensions: ø10 mm.
Mechanical fixings include ball joints on both sides.
IP degree: IP65.
Operating temperature range: -20°C to +80°C.
Storage temperature range: -30°C to +90°C.
