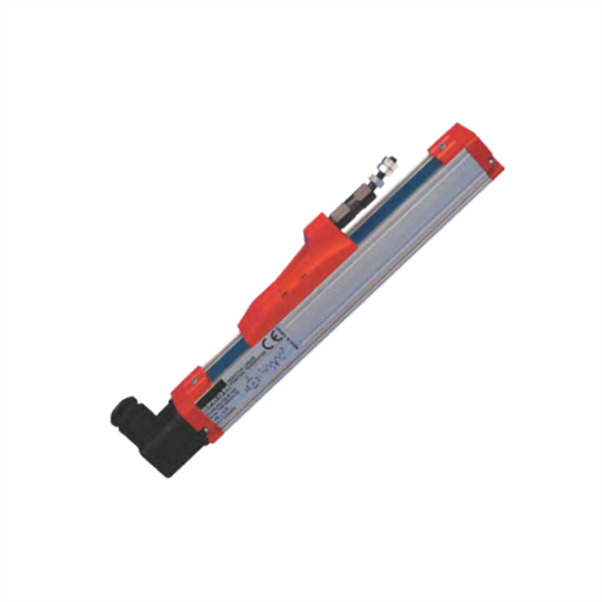

Sliding rod potentiometer 1000 mm square body
SKU: LPH1000-10K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A high-precision sliding rod potentiometer with a large stroke length, the Opkon LPH1000-10K is made to measure linear position precisely.
With its sturdy 33 mm x 33 mm square housing, this type is appropriate for a range of industrial applications where dependability and longevity are crucial.
Based on the idea of a voltage divider, the potentiometer produces an output that is proportionate to the wiper's position.
Even in challenging conditions, its conductive plastic technology guarantees excellent accuracy and longevity.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: LPH1000-10K.
Measurement Stroke: 1000 mm.
Resistance: 10K ohms.
Body Dimensions: 33 mm x 33 mm square body.
Power Supply Voltage Range: 5-48 V DC.
Temperature Range: -40°C to +85°C.
Linearity: ±0.05% over the full stroke length.
Output Type: Proportional voltage output.
Material: Conductive plastic technology.
Mechanical Life: Over 100 million cycles.
Protection Class: IP65 (dust-tight and protected against water jets).
Connector Type: Standard connector or cable options available.
Applications: Suitable for various industrial machinery, automation systems, and other environments requiring precise linear position sensing.
