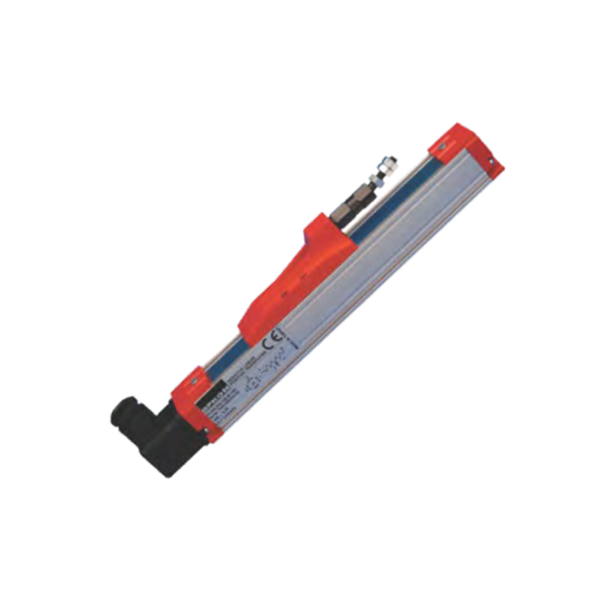

Sliding rod potentiometer 1250 mm square body
SKU: LPH1250-10K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A high-precision sliding rod potentiometer made for precise linear position measurement is the Opkon LPH1250-10K.
Because of its sturdy square body design, this potentiometer can be used in a variety of industrial settings where dependability and longevity are crucial.
It offers accurate and reliable performance across its whole range with a resistance of 10 k Ohm and a stroke length of 1250 mm.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: LPH1250-10K.
Measurement Stroke: 1250 mm.
Resistance: 10 k Ohm.
Body Dimensions: 33 mm x 33 mm.
Linearity: ±0.05% (>200 mm), ±0.1% (130-200 mm), ±0.2% (75-129 mm), ±0.5% (<75 mm).
Repeatability: < 0.01 mm.
Resolution: Infinite.
Mechanical Life: 100 million movements.
Operating Temperature: -20°C to +80°C.
Storage Temperature: -30°C to +90°C.
Protection Level: IP 40 (standard), IP 53 (upside down).
Electrical Connections: 4-pin connector.
Permissible Applied Voltage: 28 VDC max.
Displacement Speed: < 1.5 m/s.
Case Material: Anodized aluminium.
Mechanical Fixing: Variable brackets.
