Sliding rod potentiometer 150 mm square body
SKU: LPH150-10K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

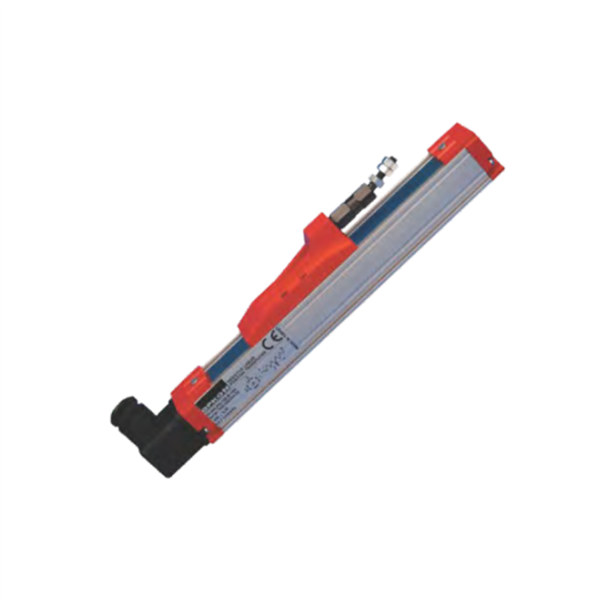

A high-precision sliding rod potentiometer made for precise linear position measurement is the Opkon LPH150-10K.
With its sturdy square body and 150 mm stroke length, it can be used in a variety of industrial settings where accurate and consistent position feedback is crucial.
Even in harsh conditions, the potentiometer's long-lasting function is guaranteed by its sturdy construction.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Measuring Range: 150 mm.
Linearity: ±0.2% (75 - 150 mm), ±0.5% (<75 mm).
Repeatability: <0.01 mm.
Resolution: Infinite.
Resistance: 10 kOhm.
Resistance Tolerance: ±20%.
Load Resistance: 100 kOhm min.
Recommended Wiper Current: <1 μA.
Permissible Applied Voltage: 28 VDC max.
Electrical Connections: Connector or 1 m cable output.
Displacement Speed: <5 m/s.
Mechanical Life: 100 million movements.
Case Dimensions: Ø18 mm.
Case Material: Anodized aluminium.
Rod Material: Stainless steel.
Rod Diameter: Ø5 mm.
Mechanical Fixing: Variable brackets.
Protection Level: IP 65 (EN 60529).
Operating Temperature: -20°C to +80°C.
Storage Temperature: -30°C to +90°C.
