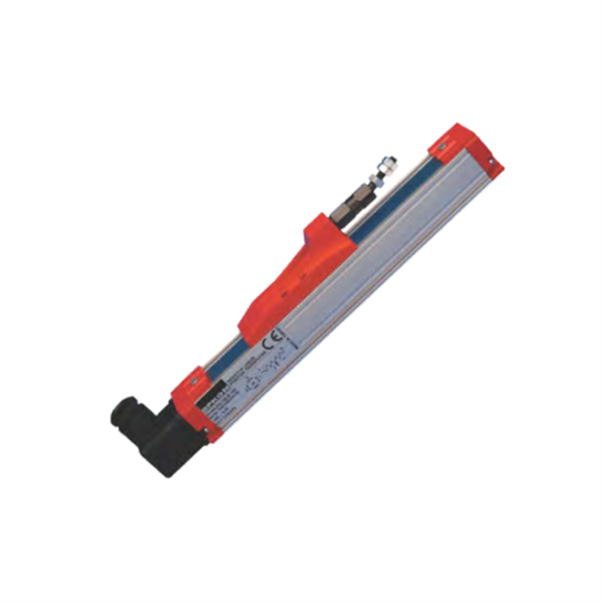

Sliding rod potentiometer 200 mm square body.
SKU: LPH200-10K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A high-precision linear position sensor developed for applications needing precise and dependable position feedback is the Opkon Sliding Rod Potentiometer LPH200-10K.
Because of its sturdy square body design, this potentiometer can be used in a variety of industrial settings.
Its 200 mm measuring range ensures accurate measurements in confined spaces thanks to its exceptional repeatability and resolution.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Measuring Range: 200 mm.
Body Type: Square.
Resistance: 10 kOhm.
Linearity: ±0.1% (130-200 mm).
Repeatability: <0.01 mm.
Resolution: Infinite.
Load Resistance: 100 kOhm min.
Permissible Applied Voltage: 28 VDC max.
Electrical Connections: Connector or 1 m cable output.
Displacement Speed: < 5 m/s.
Mechanical Life: 100 million movements.
Case Dimensions: 33 mm x 33 mm.
Case Material: Anodized aluminium.
Rod Material: Stainless steel.
Rod Diameter: Ø5 mm.
Mechanical Fixing: Ball joints on both sides.
Protection Level: IP 65 - EN 60529.
Operating Temperature: -20°C to +80°C.
Storage Temperature: -30°C to +90°C.
