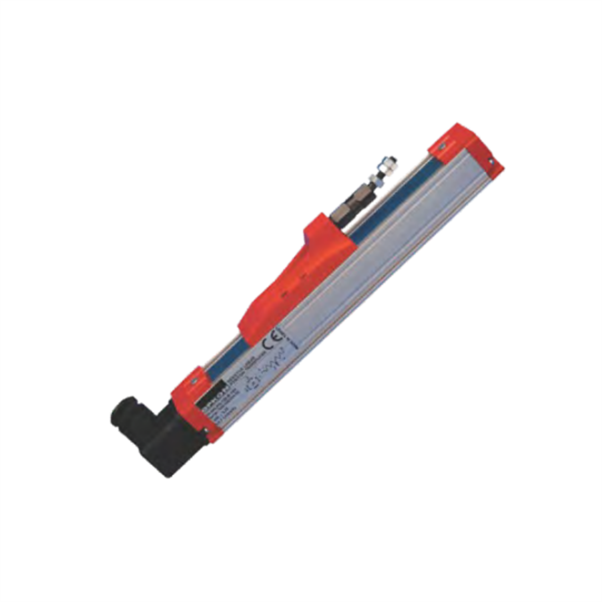

Sliding rod potentiometer 250 mm square body.
SKU: LPH250-10K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A high-precision linear position transducer made for precise linear displacement measurement is the Opkon Sliding Rod Potentiometer LPH250-10K.
Its sturdy 33 mm x 33 mm square body makes it appropriate for a range of industrial settings with constrained space.
With a resistance of 10 kOhm and a measurement stroke of 250 mm, this potentiometer ensures accurate position feedback and offers dependable performance.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Measurement Stroke: 250 mm.
Resistance: 10 kOhm.
Body Dimensions: 33 mm x 33 mm square.
Repeatability: < 0.01 mm.
Resolution: Infinite.
Linearity: ±0.05% (>200 mm).
Load Resistance: 100 kOhm min.
Permissible Applied Voltage: 28 VDC max.
Electrical Connections: Connector or 1 m cable output.
Displacement Speed: < 5 m/s.
Mechanical Life: 100 million movements.
Case Material: Anodized aluminium.
Rod Material: Stainless steel.
Rod Diameter: Ø5 mm.
Mechanical Fixing: Ball joints on both sides.
Protection Level: IP65 (EN 60529).
Operating Temperature: -20°C to +80°C.
Storage Temperature: -30°C to +90°C.
