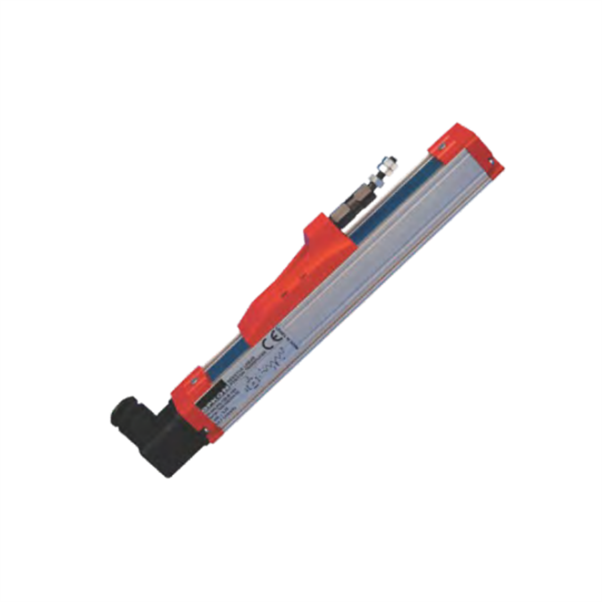

Sliding rod potentiometer 300 mm square body.
SKU: LPH300-10K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
High-precision linear position transducers like the Opkon Sliding Rod Potentiometer LPH300-10K are made to measure displacement precisely in a variety of industrial settings.
Because of its sturdy square body design, it can be used in settings where dependability and longevity are crucial.
This potentiometer ensures accurate control and feedback by producing a steady, smooth output signal proportionate to the sliding rod's location.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Measurement Stroke: 300 mm.
Linearity: ±0.05% (>200 mm).
Resistance: 10 kOhm.
Resolution: Infinite.
Repeatability: <0.01 mm.
Load Resistance: 100 kOhm min.
Permissible Applied Voltage: 28 VDC max.
Displacement Speed: < 5 m/s.
Mechanical Life: 100 million movements.
Case Dimensions: 33 mm x 33 mm.
Case Material: Anodized aluminium.
Rod Material: Stainless steel.
Rod Diameter: Ø5 mm.
Mechanical Fixing: Ball joints on both sides.
Protection Level: IP65 (EN 60529).
Operating Temperature: -20°C to +80°C.
Storage Temperature: -30°C to +90°C.
