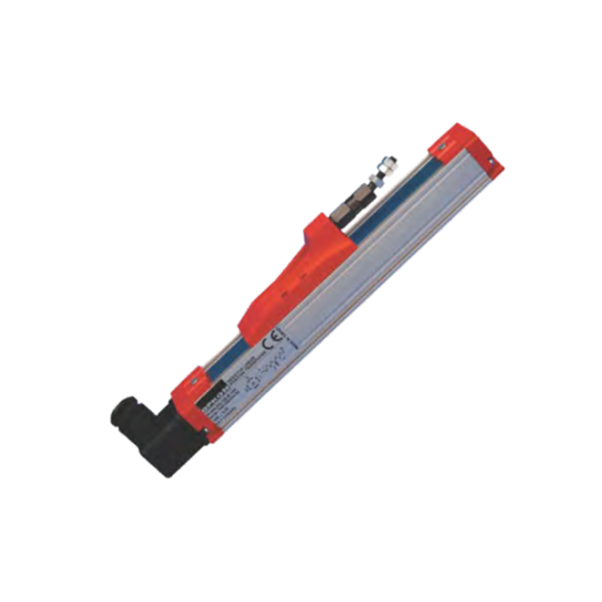

Sliding rod potentiometer 400 mm square body

Pricing available on request Description: A high-precision linear position transducer made for industrial use is the Opkon Sliding Rod Potentiometer LPH400-10K. Its sturdy 33 mm x 33 mm square body makes it appropriate for settings where dependability and durability are crucial. To ensure precise control and feedback in a variety of mechanical systems, this potentiometer is perfect for detecting linear displacement with high precision and repeatability. Specifications: Model: LPH400-10K. Measurement Stroke: 400 mm. Resistance: 10 kOhm. Body Dimensions: 33 mm x 33 mm square. Power Supply Voltage Range: 5-48 V DC. Temperature Range: Operating: -40°C to +85°C. Storage: -30°C to +90°C. Linearity: ±0.05% (>200 mm). Repeatability: <0.01 mm. Resolution: Infinite. Load Resistance: 100 kOhm minimum. Wiper Current: <1 μA. Displacement Speed: <5 m/s. Mechanical Life: 100 million movements. Case Material: Anodized aluminium. Rod Material: Stainless steel. Rod Diameter: Ø5 mm. Mechanical Fixing: Ball joints on both sides. Protection Level: IP65 (EN 60529). Electrical Connections: Connector or 1 m cable output.
