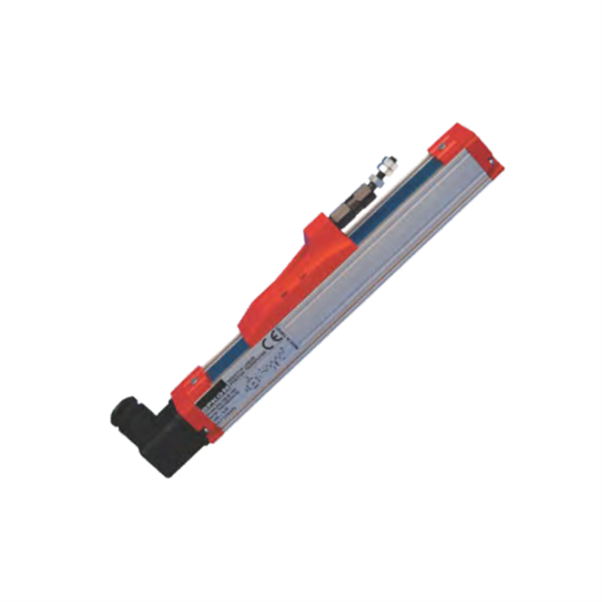

Sliding rod potentiometer 500 mm square body
SKU: LPH500-10K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A high-precision sliding rod potentiometer made for precise linear position measurement is the Opkon LPH500-10K.
Because of its sturdy 33 mm x 33 mm square housing, it can be used in a variety of industrial settings where dependability and longevity are crucial.
This potentiometer performs exceptionally well at both low and high temperatures, making it perfect for use in settings with significant mechanical stress.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: LPH500-10K.
Stroke Length: 500 mm.
Resistance: 10K ohms.
Body Dimensions: 33 mm x 33 mm.
Power Supply Voltage Range: 5-48 V DC.
Linearity: ±0.05%.
Temperature Range: -40°C to +85°C.
Output Type: Voltage divider.
Material: Conductive plastic technology.
Mounting: Easy to assemble with a sliding mechanism.
Applications: Suitable for industrial machinery, automation systems, and other mechanical systems requiring precise position feedback.
